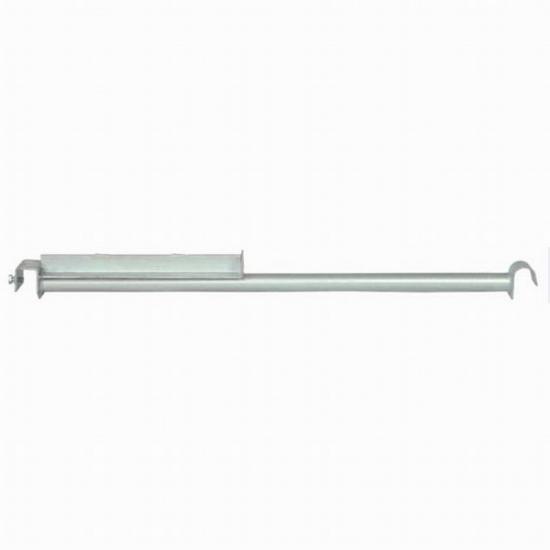

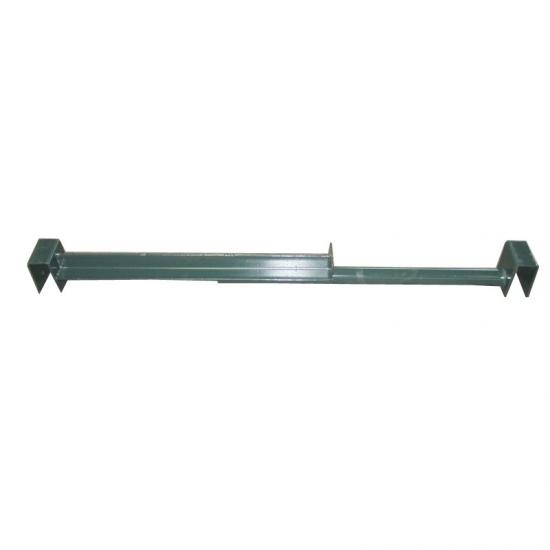

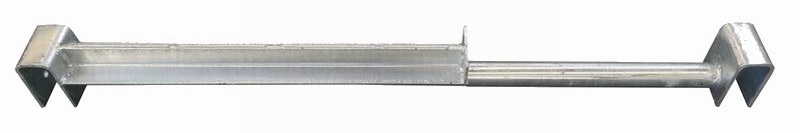

Kwikstage Scaffolding Ladder Access Transom

Kwikstage Ladder Access Transom is used where a ladder access or trapdoor is required inside a bay. The Ladder Access Transom is located between the two ledgers, this is placed approx 64" from the previous transom.

To be used with a Safety Trap-Door, a single section verticle ladder is held in place with 4 nos Metal Ladder Clamp.

We recommend that you used 2 nos 64" steel planks, the remaining space is filled with 3 nos steel planks.

Item NO.:
KS.LAT
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
100PCS
Color:
Galvainized Colour; Powder Coated / Painted Blue,
Ｍaterial:
Steel

Inquire now

Product Detail

Kwikstage Scaffolding Ladder Access Transom

Code	Description	Material	Size	Weight (kg)	Weight (lbs)
KS.LAT.244	2.44M Ladder Access Transom	Angle Steel 50x5mm; Q235	2438mm (8')	16.94	37.35
KS.LAT.183	1.83M Ladder Access Transom		1829mm (6')	14.75	32.52
KS.LAT.152	1.52M Ladder Access Transom		1524mm (5')	13.66	30.12
KS.LAT.127	1.27M Ladder Access Transom		1268mm (4'2")	12.74	28.09

Features:

Dimension: Angle Steel 50x5mm. Other thickness 4mm is also available by request.

Steel Tube: O.D 48.3x3.25mm

Steel Grade: Q235

U-plate: t=6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Quality Standard: AS/NZS 1576

Welding Process: CO2/Mixture Gas Shielding Welding

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we

Subject : Kwikstage Scaffolding Ladder Access Transom

Tags :

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related products

Kwikstage System Scaffolding Return Transom

Kwikstage Scaffolding Return transom allows a 90 degree turn in the scaffold and sit over the ledger allowing boards to run at right angles in adjacent bays. It can also be used to change direction. The use of Return Transoms eliminates the " gap " between runs at right angles.

Hot Dip Galvanized Speedshore Kwikstage Scaffolding Vertical Post

Speed Shore Kwikstage scaffolding is the type of heavy duty kwiskstage system scaffold that used for concrete slab formwork solutions with sleeved standard, C-ledgers, trigger brace, solid adjustable screw jack base , forkhead jacks, rail post etc.

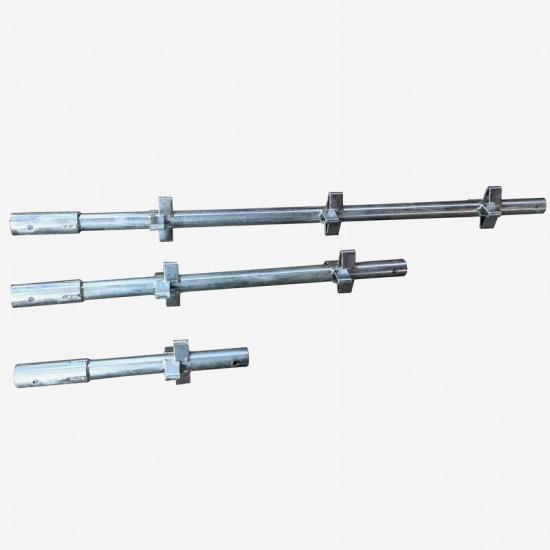

Australian Kwikstage Scaffolding Standard

AS/NZS 1576 Kwikstage Scaffolding Standard

Australian Kwikstage System Scaffolding vertical post is made by O.D. 48.3mm x 4mm thickness high quality steel tubing which can provides safety and heavy duty support for scaffolding, and complies to AS/NZS 1576 requirements. Kwikstage Scaffolding Main Componenets: Standard (Vertical), Ledger (Horizontal), Diagonal Brace (Bay Brace), Transom, Ladd1

Australian / NZ Kwikstage System Scaffolding Ledger

Kwikstage System Scaffolding Ledger is part of scaffolding component used as scaffold runner or transom. It is usually fabricated by O.D 48.3x3.25mm steel tubes and comply with the Standard requiremwnts of AS/NZS 1576 for Australian / New Zealand's market. Kwikstage Scaffolding Main Componenets: Standard, Ledger, Diagonal Brace (Bay Brace), Transom1

Kwikstage Scaffolding Diagonal Brace / Bay Brace

Kwikstage System Scaffolding Diagonal Brace, also called bay brace, is a main scaffolding component that gives additional strength to the structure and keep it stable. The brace is made by O.D48.3x2.3mm tube and bolt-jointed the C pressing adaptors with wedge pins at brace ends. It meets the Standard requirements of AS/NZS 1576. Kwikstage Sca1

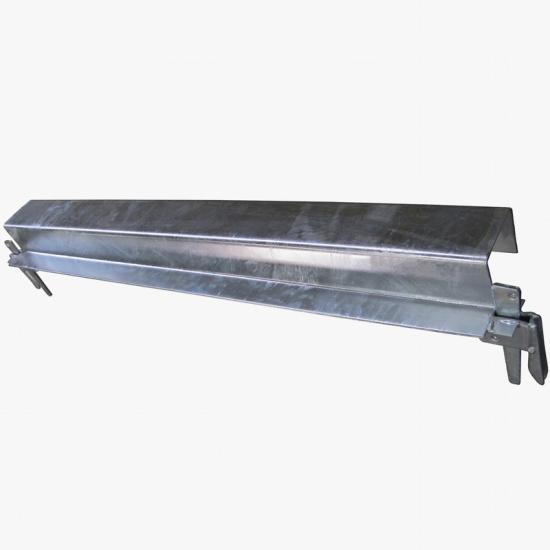

AS/NZS 1576 Kwikstage System Scaffolding Transom

Kwikstage System Scaffolding Transom is the component of that for holding the platforms or planks without hooks, it is made by the 50x5mm angle steel and welded two ledger adaptors at two ends. Kwikstage Scaffolding Main Componenets: Vertical (Standard), Horizontal (Ledger), Diagonal Brace (Bay Brace), Transom, Ladder Access Transom, Return T1

Kwikstage System Scaffolding Mesh Panel, Brick Guard

Kwikstage Mesh Panel / Brick Guard is placed between the ledger and the steel plank. Designed to be suspended from a guard rail ledger enclosing the space between the ledger and the working platform for safety.

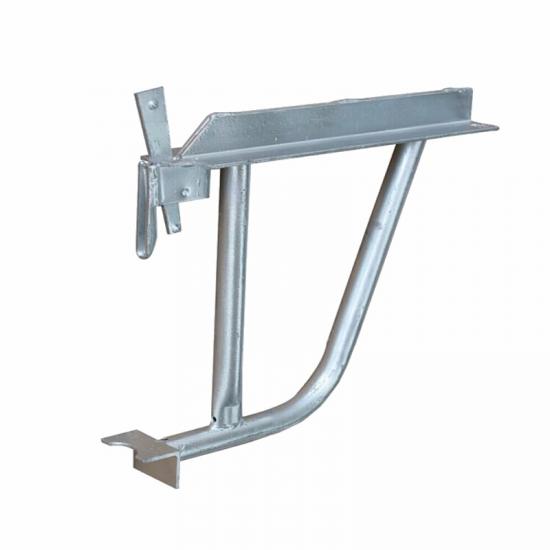

Kwikstage Scaffolding Hop Up Bracket
