AS/NZS 1576 Kwikstage System Scaffolding Transom

Kwikstage Scaffolding Transom
Kwikstage Scaffolding Transom Kwikstage Scaffolding Transom Kwikstage Scaffolding Transom Kwikstage Scaffolding Transom

AS/NZS 1576 Kwikstage System Scaffolding Transom

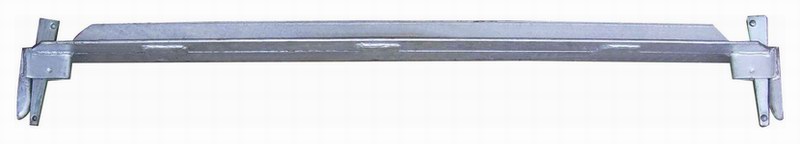

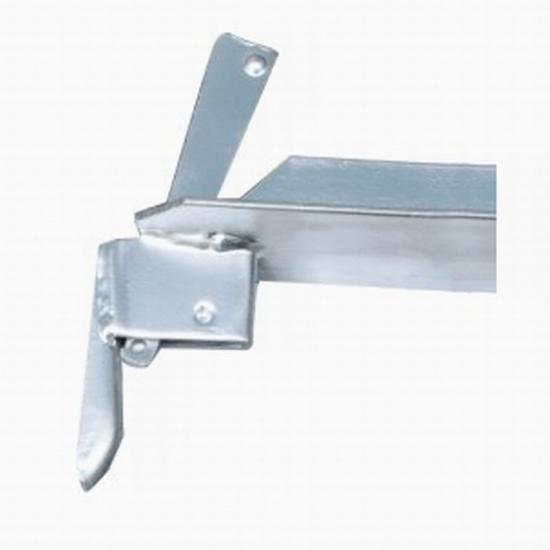

Kwikstage System Scaffolding Transom is the component of that for holding the platforms or planks without hooks, it is made by the 50x5mm angle steel and welded two ledger adaptors at two ends.

Kwikstage Scaffolding Main Componenets: Vertical (Standard), Horizontal (Ledger), Diagonal Brace (Bay Brace), Transom, Ladder Access Transom, Return Transom, Plank, Toe Board, Stairway, Brick Guard (Mesh Panel), Gate Standard, Trim Standard, Hop Up Bracket, Hop Down Bracket, Tie Bar, Base Jack, U-head Jack, and so on.


  • Item NO.:

    KS.T

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    300PCS

  • Color:

    Galvanized Colour
Inquire now
  • Product Detail

Kwikstage Scaffolding Transom


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
KS.T.244 2.44M Transom Angle Steel 50x5mm; Q235 2438mm (8') 19.71  43.46
KS.T.183 1.83M Transom 1829mm (6') 14.99  33.05
KS.T.152 1.52M Transom 1524mm (5') 12.58  27.74
KS.T.127 1.27M Transom 1268mm (4'2") 10.66  23.51
KS.T.122 1.22M Transom 1219mm (4') 10.29  22.69
KS.T.091 0.91M Transom 914mm (3') 7.88  17.38
KS.T.076 0.76M Transom 762mm (2'6") 6.75  14.88
KS.T.053 0.53M Transom 530mm (1'9") 5.00  11.03



Features:

Dimension: Angle Steel 50x5mm. Other thickness 4mm is also available by request.

Steel Grade: Q235

Wedge Pin: t=6mm

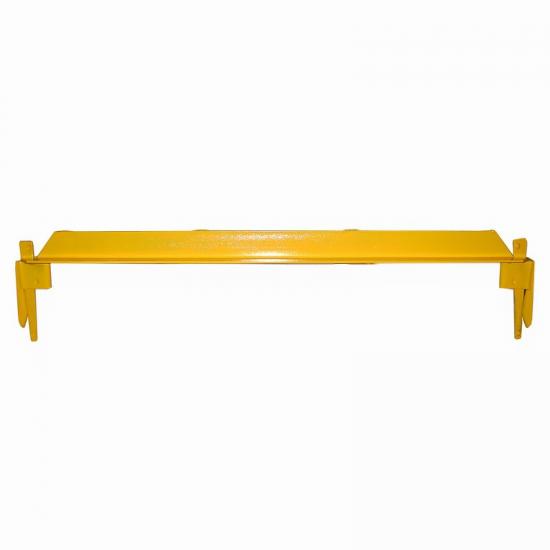

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: AS/NZS 1576


Welding Process: CO2/Mixture Gas Shielding Welding

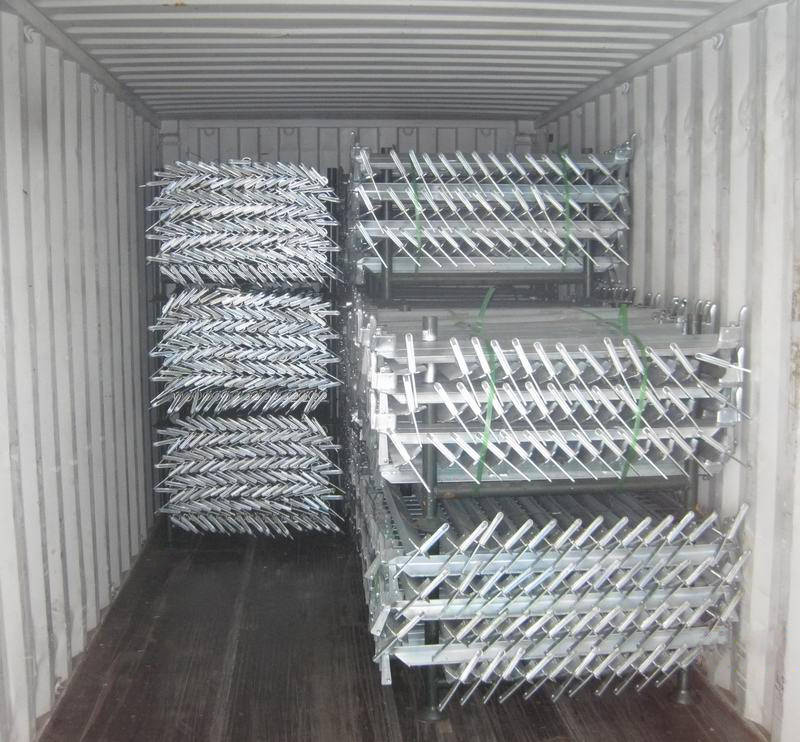

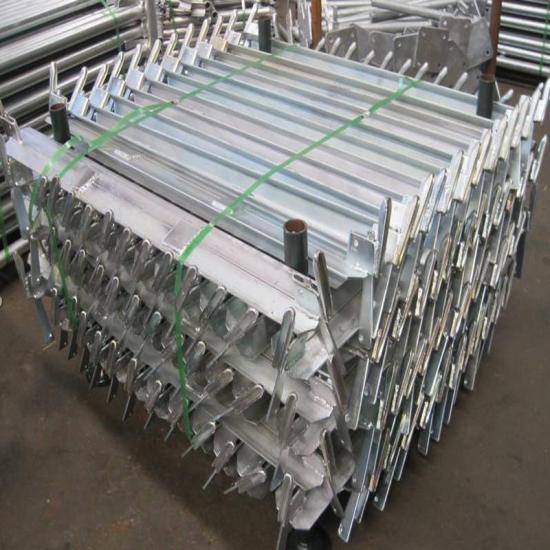

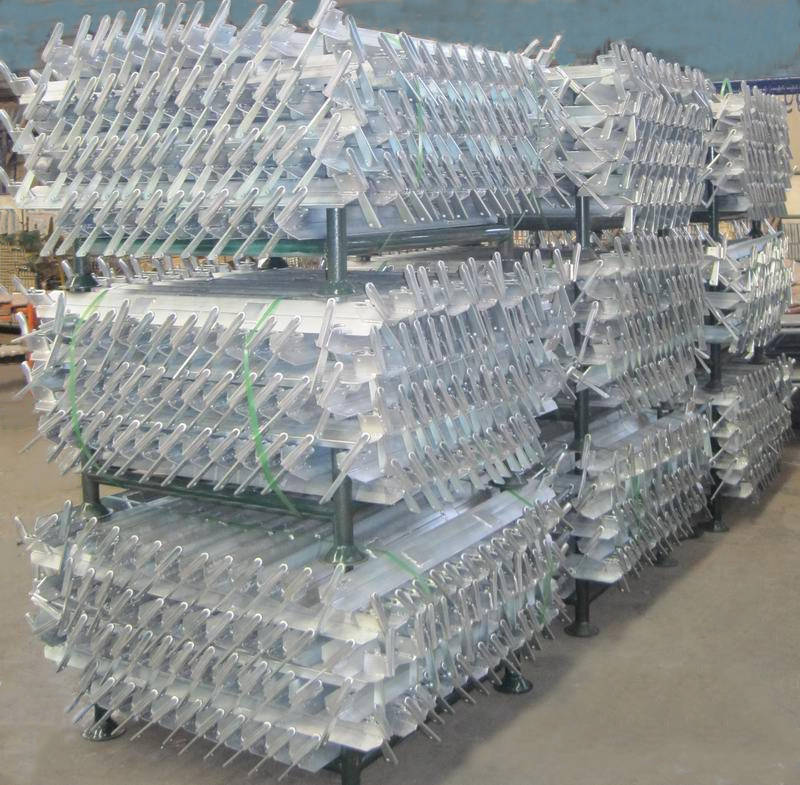

Kwiksatge Scaffolding Packing and Loading:
