Kwikstage Scaffolding Hop Up Bracket

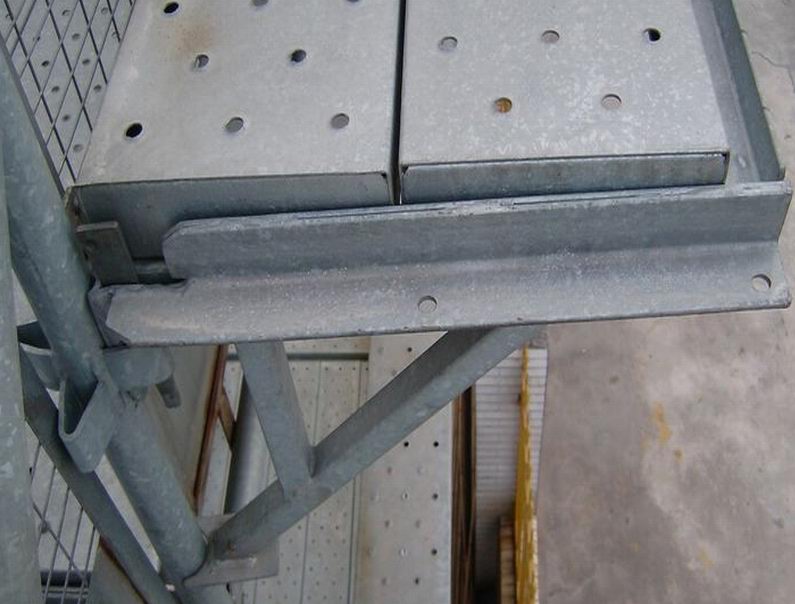

Kwikstage Scaffolding Hop Up Brackets are used to give an extra work platform for scaffolding. Normally located on the inside face of the scaffold, these are 1, 2 and 3 board sizes.

Item NO.:
KS.HUB
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
100PCS
Color:
Galvainized Colour; Powder Coated / Painted Blue,
Ｍaterial:
Steel

Inquire now

Product Detail

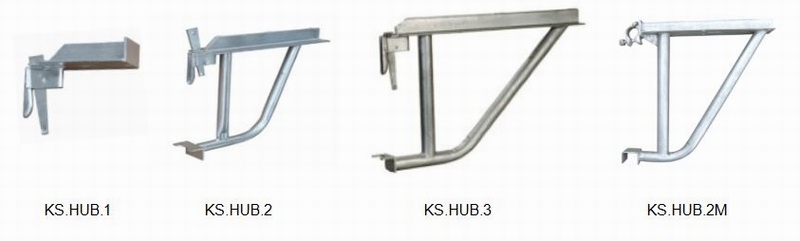

Kwikstage Scaffolding Hop Up Bracket / Stage Board Bracket

Code	Description	Material	Weight(kg)	Weight(lbs)

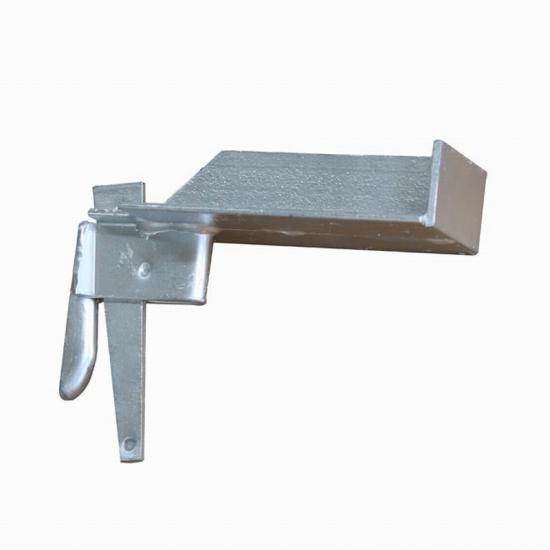

KS.HUB.1	Hop Up Bracket 1 Board	Angle steel 50x5mm; Q235	2.62	5.78
KS.HUB.2	Hop Up Bracket 2 Board		5.72	12.61

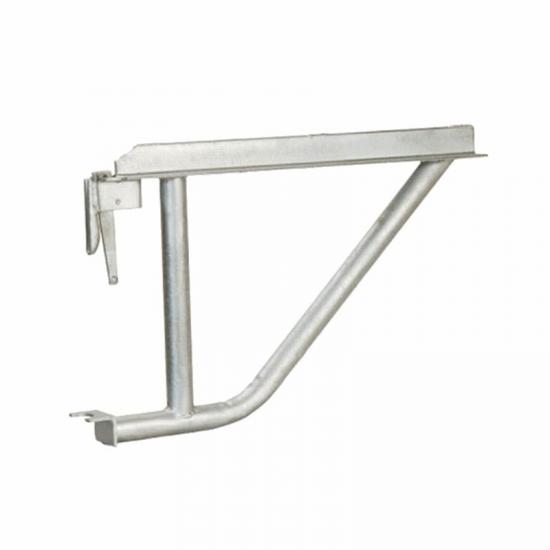

KS.HUB.3	Hop Up Bracket 3 Board		9.46	20.86

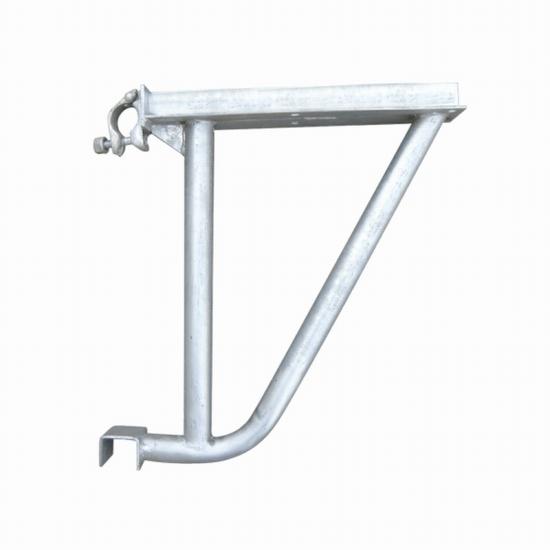

KS.HUB.2M	Mobile Hop Up Bracket 2 Board		7.20	15.88

Features:

Dimension: Angle Steel 50x5mm. 4mm thickness angle steel is also available by request.

Supporting tube can be circle tube or square tube.

Steel Grade: Q235

Wedge Pin: t=6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

Quality Standard: AS/NZS 1576

Welding Process: CO2/Mixture Gas Shielding Welding

Causion: For 2 and 3 board hop up brackets, there must be installed tie bars to prevent the steel planks falling out!
