Australian / NZ Kwikstage System Scaffolding Ledger

Kwikstage System Scaffolding Ledger is part of scaffolding component used as scaffold runner or transom. It is usually fabricated by O.D 48.3x3.25mm steel tubes and comply with the Standard requiremwnts of AS/NZS 1576 for Australian / New Zealand's market.


Kwikstage Scaffolding Main Componenets: Standard, Ledger, Diagonal Brace (Bay Brace), Transom, Ladder Access Transom, Return Transom, Plank, Toe Board, Stairway, Brick Guard (Mesh Panel), Gate Standard, Trim Standard, Hop Up Bracket, Hop Down Bracket, Tie Bar, Base Jack, U-head Jack, and so on.

  • Item NO.:

    KS.L

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    500PCS

  • Color:

    Galvanized Colour
Inquire now
  • Product Detail

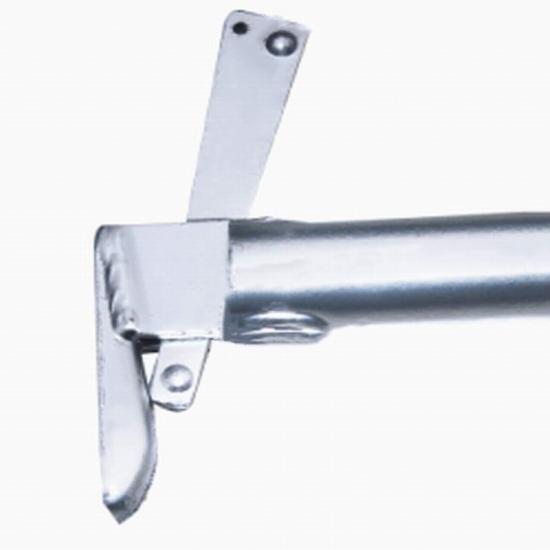

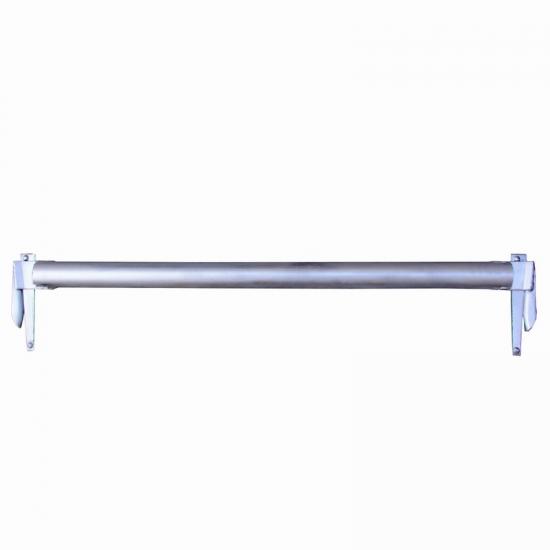

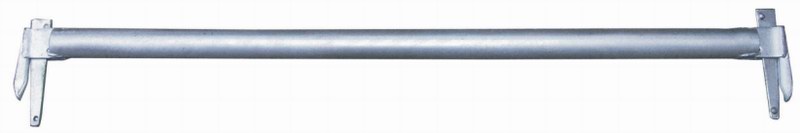

Kwikstage Scaffolding Horizontal / Ledger


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
KS.L.305 3.05M Ledger Ø48.3x3.25mm; Q235-Q355 3048mm (10') 11.90  26.24
KS.L.244 2.44M Ledger 2438mm (8') 9.80  21.61
KS.L.183 1.83M Ledger 1829mm (6') 7.60  16.76
KS.L.152 1.52M Ledger 1524mm (5') 6.50  14.33
KS.L.127 1.27M Ledger 1268mm (4'2") 5.60  12.35
KS.L.122 1.22M Ledger 1219mm (4') 5.40  11.91
KS.L.091 0.91M Ledger 914mm (3') 4.30  9.48
KS.L.076 0.76M Ledger 762mm (2'6") 3.80  8.38
KS.L.053 0.53M Ledger 530mm (1'9") 2.94  6.48






Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.

Steel Tube Grade: Q235-Q355

Wedge Pin: t=6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Quality Standard: AS/NZS 1576


Welding Process: CO2/Mixture Gas Shielding Welding

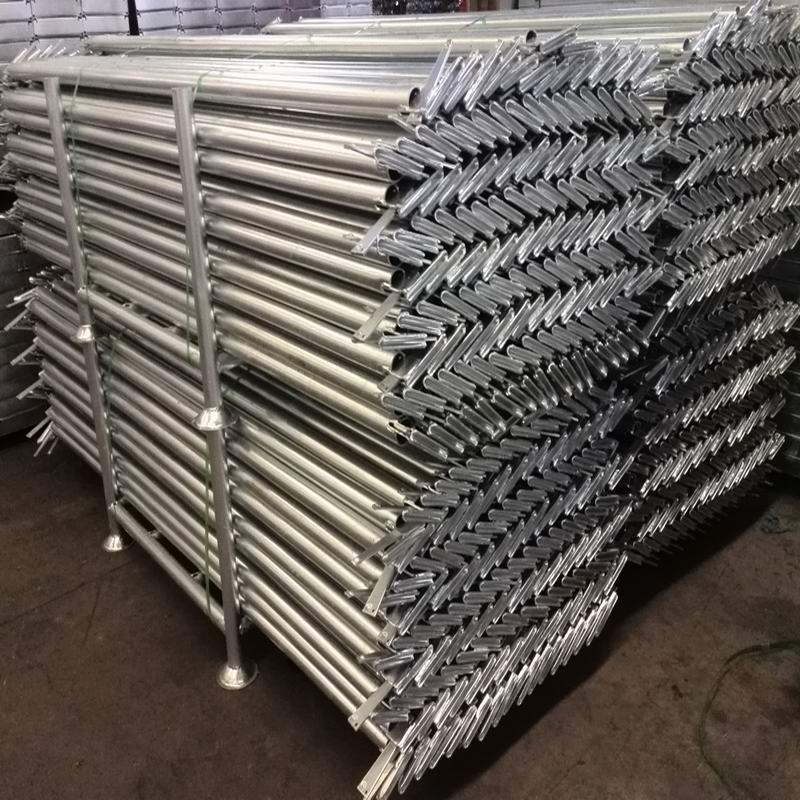

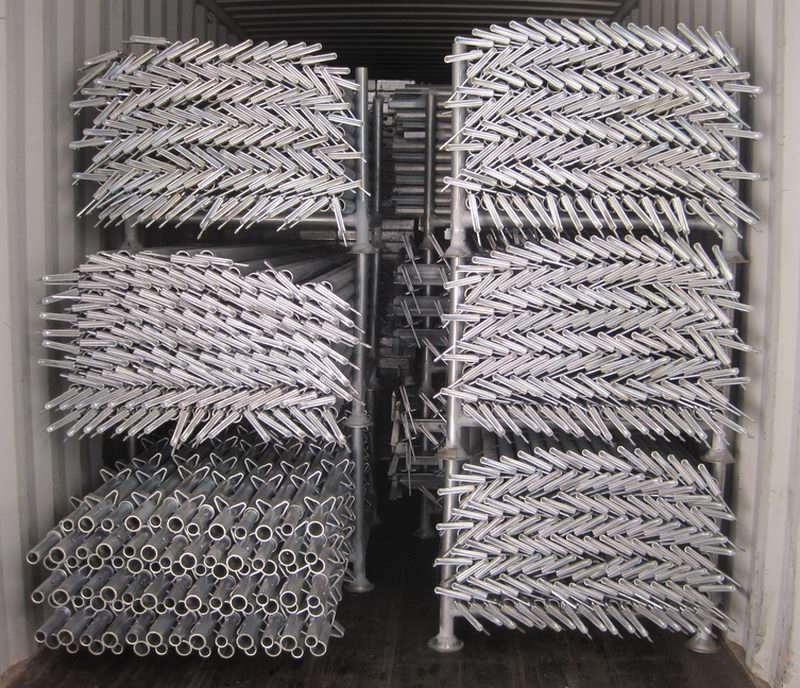

Kwiksatge Scaffolding Packing and Loading:
