Kwikstage System Scaffolding Mesh Panel, Brick Guard

Kwikstage Mesh Panel / Brick Guard is placed between the ledger and the steel plank. Designed to be suspended from a guard rail ledger enclosing the space between the ledger and the working platform for safety.

  • Item NO.:

    KS.MP

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    200PCS

  • Color:

    Galvainized Colour; Powder Coated / Painted Blue,

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

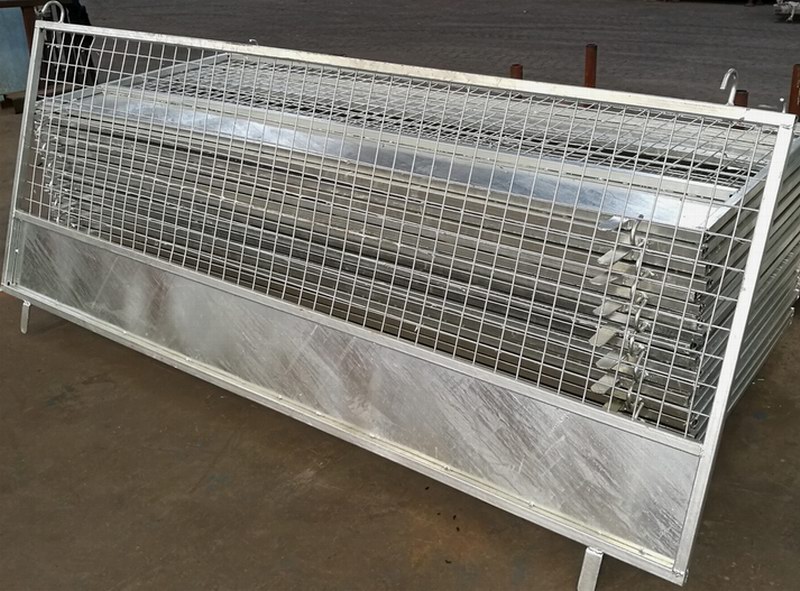

Kwikstage Scaffolding Mesh Panel / Brick Guard

Code Description Material Size Weight (kg) Weight (lbs)
KS.MP.244 2.44M Mesh Panel Wire mesh grid 50x25mm, toe board t=1.8mm  2438mm (8') 22.50  49.61
KS.MP.183 1.83M Mesh Panel 1829mm (6') 19.44  42.87
KS.MP.152 1.52M Mesh Panel 1524mm (5') 16.66  36.74
KS.MP.127 1.27M Mesh Panel 1268mm (4'2") 14.33  31.60
KS.MP.122 1.22M Mesh Panel 1219mm (4') 13.89  30.63
KS.MP.091 0.91M Mesh Panel 914mm (3') 11.11  24.50
KS.MP.076 0.76M Mesh Panel 762mm (2'6") 9.73  21.45

Features:

Panel frame: Angle steel 30x30x3mm or Squre Tube 25x25x1.5mm are available.

Wire Mesh: Mesh grid 50x25mm, 50x50mm or 40x40mm are available.

Toe Board Plate: 1.8mm or 1.5mm thickness are available.

Steel Grade: Q235

Finishing: Hot dip galvanized, powder coated, painted.


Kwikstage Scaffolding Brick Guard

Kwikstage Scaffold Mesh Guard
