Kwikstage scaffolding Corner Board

Kwikstage Corner Board
Kwikstage Corner Board Kwikstage Corner Board

Kwikstage scaffolding Corner Board

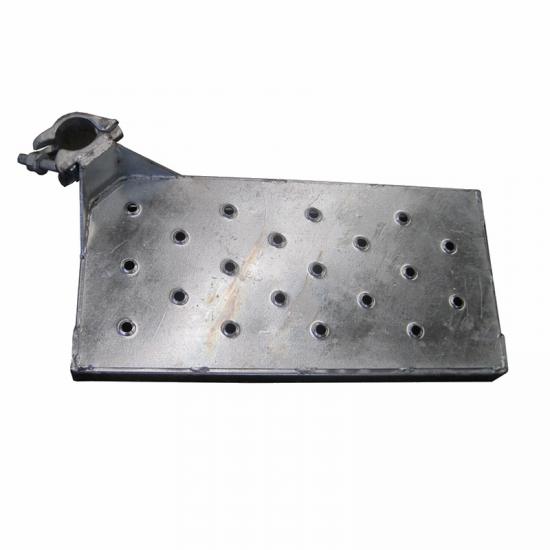

Kwikstage Internal Corner Board is used to fill in the gap ineternal corners when stage board brackets are used.

It is a safe element to fill space between boards and standards to form a safe work platform and leveling.

The internal corner boards sizes include one boards, 2 boards, 3 boards according to the width.

  • Item NO.:

    KS.CBD

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    100PCS

  • Color:

    Galvainized Colour; Powder Coated / Painted Blue,

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

Kwikstage Scaffolding Corner Board

Code Description Material Weight(kg) Weight(lbs)
KS.CBD.1x1 Corner Board 1x1 Plate t=1.8mm; Q235 4.82  10.63
KS.CBD.2x1 Corner Board 2x1 6.60  14.55
KS.CBD.2x2 Corner Board 2x2 10.39  22.91
KS.CBD.2x3 Corner Board 2x3 14.01  30.89
KS.CBD.3x1 Corner Board 3x1 9.09  20.04
KS.CBD.3x3 Corner Board 3x3 17.68  38.98
Finishing: Hot dip galvanized, powder coated, painted.
