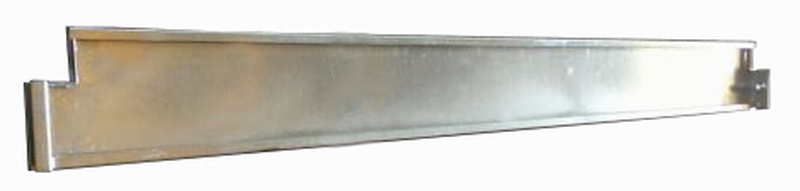

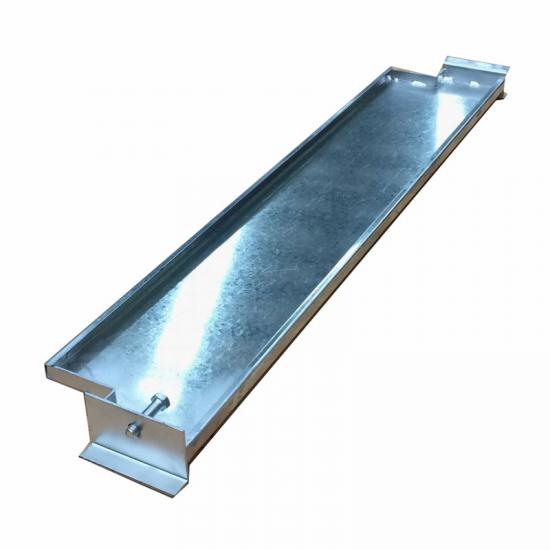

AS/NZS 1576 Kwikstage Scaffolding Toe Board with Bolt Lock

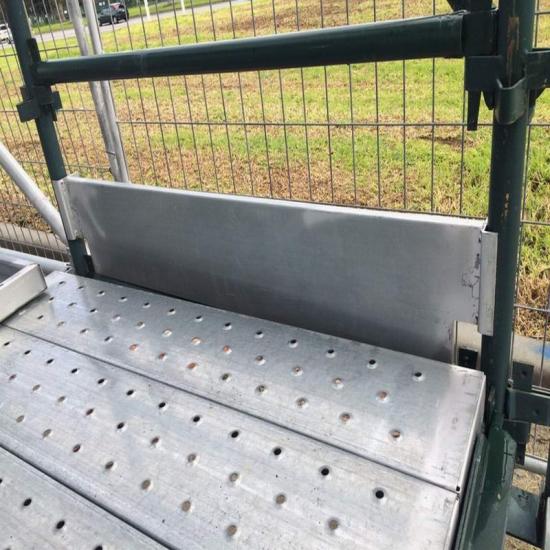

Kwikstage Scaffolding Toe Board / Kick Board is the component that prevents the building materials or tools falling off from working platform. The toe board has bolts at the ends to hold itself sitting between two verticals post of the platform.

  • Item NO.:

    KS.TBD

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    200PCS

  • Color:

    Galvainized Colour; Powder Coated or Painted Blue,

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

Kwikstage Scaffolding Toe Board / Kick Board with Bolt Lock (240mm wide)

Code Description Material Size Weight (kg) Weight (lbs)
KS.TBD.24305 3.05M Bolted Toe Board Plate t=1.8mm; Q235 240x3048mm (10') 14.60  32.19
KS.TBD.24244 2.44M Bolted Toe Board 240x2438mm (8') 11.80  26.02
KS.TBD.24183 1.83M Bolted Toe Board 240x1829mm (6') 9.10  20.07
KS.TBD.24152 1.52M Bolted Toe Board 240x1524mm (5') 7.70  16.98
KS.TBD.24127 1.27M Bolted Toe Board 240x1268mm (4'2") 6.50  14.33
KS.TBD.24122 1.22M Bolted Toe Board 240x1219mm (4') 6.30  13.89
KS.TBD.24091 0.91M Bolted Toe Board 240x914mm (3') 4.90  10.80
KS.TBD.24076 0.76M Bolted Toe Board 240x762mm (2'6") 4.20  9.26

Features:

The toe board is made by 1.8mm or 1.5mm steel plate.

Type of Locking: Bolt Lock

Finishing: Hot Dip Galvanized or Pre-galvanized, Powder Coated, Painted
