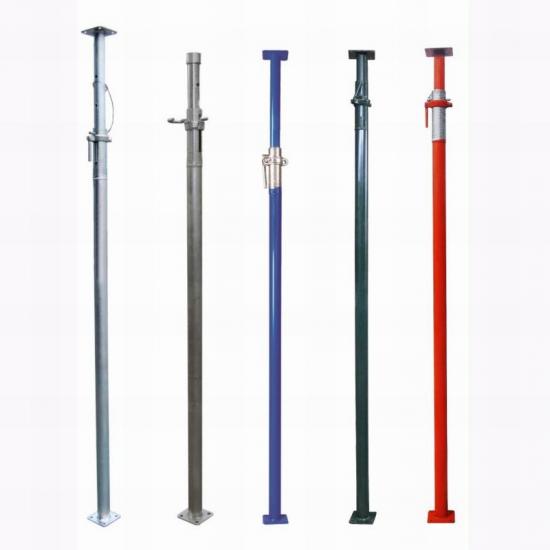

Shoring Prop is a kind of adjustable vertical pipe suport for concrete formwork suporting, is widely used for building, tunnel, mine construction. The high tensile steel pin is located through a slot in the outer section and a hole on the inner section for coarse adjustments. The casting collar located below the pin gives fine adjustment for leveli1
German Type Ringlock Scaffolding,also called Allround scaffolding, typical product layher scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access wor1
Scaffolding brace or diagonal gives additional strength to the structure and keep it stable. These are available in modular lengths to meet specific scaffold project requirements. Tube diameter 48.3 mm with 2.5 mm thickness is used with steel casted ends which can be easily assembled with hammering.
Level Brace, also called Plain Brace, is main component of system scaffolding which use as diagonal ledger. It is used in the large bay mobile scaffolding tower and gives additional strength to the tower structure and keep the tower stable.
Kwikstage System Scaffolding Ledger is part of scaffolding component used as scaffold runner or transom. It is usually fabricated by O.D 48.3x3.25mm steel tubes and comply with the Standard requiremwnts of AS/NZS 1576 for Australian / New Zealand's market. Kwikstage Scaffolding Main Componenets: Standard, Ledger, Diagonal Brace (Bay Brace), Transom1
Kwikstage System Scaffolding Diagonal Brace, also called bay brace, is a main scaffolding component that gives additional strength to the structure and keep it stable. The brace is made by O.D48.3x2.3mm tube and bolt-jointed the C pressing adaptors with wedge pins at brace ends. It meets the Standard requirements of AS/NZS 1576. Kwikstage Sca1
Kwikstage System Scaffolding Transom is the component of that for holding the platforms or planks without hooks, it is made by the 50x5mm angle steel and welded two ledger adaptors at two ends. Kwikstage Scaffolding Main Componenets: Vertical (Standard), Horizontal (Ledger), Diagonal Brace (Bay Brace), Transom, Ladder Access Transom, Return T1
Cup Lock Scaffolding is fabricated by ø48.3x3.25mm (1.90" O.D x 10 gauge) high strength steel tubes. It is a fully Hot Dip Galvanized multi-purpose steel scaffold system suitable for providing general access and supporting vertical loads. The key feature is its bowl locking point which allows up to 4 horizontals to be connected to a vertical in a s1
D60 Ring Lock High Load Shoring Scaffolding: It is used in Heavy Duty Load Requirement Construction Support, Including Infrastructure Scaffolding Like Bridge, High Speedway Construction, Industrial Scaffolding like Offshore Construction and High Load Concrete Formwork Temporary Scaffolding. The Vertical is made by O.D60x3.5mm high grade steel tube 1
D60 Ring Lock High Load Shoring Scaffolding: It is used in Heavy Duty Load Requirement Construction Support, Including Infrastructure Scaffolding Like Bridge, High Speedway Construction, Industrial Scaffolding like Offshore Construction and High Load Concrete Formwork Temporary Scaffolding. The Vertical is made by O.D60x3.5mm high grade steel tube 1
Cross Lock Scaffolding is a kind of new modular scaffolding system which in simple structure and fabricated with few accessories, it can provide easy erection and dismantling, and speeded and high efficiency performance, and it is use for residential, commercial construction. Scaffolding Components: Standard (Vertical), Ledger (Horizontal).
Cross Lock Scaffolding is a kind of new modular scaffolding system which in simple structure and fabricated with few accessories, it can provide easy erection and dismantling, and speeded and high efficiency performance, and it is use for residential, commercial construction. Scaffolding Components: Standard, Ledger.
South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Standards is made from O.D48.3mm x 3.25mm Scaffold Tube with V-lugs. It is Vertical Parts of Kwikstage Modular System. Kwikstage Scaffolding is commonly used for Concrete Formwork Slab Support, also used in Construction and Building. The main components of 1
South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Ledger is made from O.D48.3mm x 2.5mm Scaffold Tube with C-pressing ends and wedge pins. The main components of SA Kwikstage Scaffolding include: Standard, Ledger, Diagonal Brace, Hook-on Plank, Toe Board, Stair or Ladder, Cantilever Bracket, Strip Beam, decking 1
Advantage of Aluminium Ring Lock Scaffolding: Quick erection and dismantling: Ringlock scaffold is all pre-measured and just a hammer is required when erection. Safety: The reliable wedge connections prevent ledgers and diagonal braces from any kind of loosening. The rigid, right fit of all connections with concentric derivation of loads guarantees1
Aluminum Multifunctional Scaffold series are light in weight and easy in operation. There are various sizes and designs to meet your special working requirements both indoors and outdoors. These scaffold series are especially ideal for internal and external decoration and maintenance.
Aluminum Mobile scaffolding tower is widely used in exhibition setups, indoor decoration or outside construction. It can be movable with caster wheels.We also can customize it according to your drawings. Components of a complete set scaffolding tower: Rung Frame, Rung Ladder Frame,Horizontal Brace, Diagonal Brace, Plain Brace, Stabilizer, Joint Pin1
Aluminum Ladders are acted as scaffolding access, and popular for home uses, decoration jobs, building and construction, even for industry. Using high-quality, high-strength 6061-T6 aircraft grade aluminum alloy, the ladders are manufactured for extra safety and longer life.
X-Shoring Frame is a typical shoring scaffolding used in Australia. It is made from high quality steel tube O.D. 60x3.5mm or O.D. 60x.40mm as frame legs, O.D. 42x2.3mm tube as the frame horizontal section, O.D. 28x2.0mm tube as the inside X-section. X-shoring frame offers heavy duty supoort for construction.
