Ring Lock Scaffolding System for Residential Construction

German Type Ring Lock Scaffolding Ledger, Horizontal

German Type Ringlock Scaffolding,also called Allround scaffolding, typical product layher scaffolding, is one of the most popular system scaffolding or modular scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform / grandstand for events, and also plays a heavy load duty in many kinds of project.

Scaffolding Components: Standard, Ledger, Level Brace, Diagonal Brace, Side Bracket, Plank, Stair.

Item NO.:
RS.L
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, Shenzhen
Payment:
T/T
Min order:
20tons
Color:
Silver Colour, Hot dip Galvanized

Inquire now

Product Detail

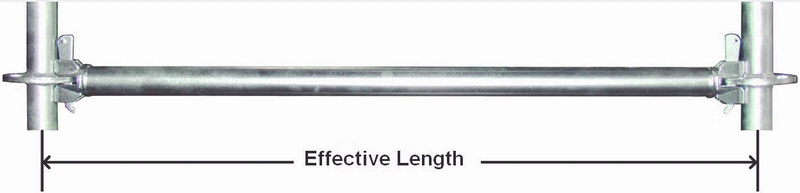

European Ring Lock Scaffolding Ledger / Horizontal

Product Details:

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
RS.L.307	3.07M Ledger	Ø48.3x3.25mm; Q235-Q355	3072mm (10'1")	11.56	25.49
RS.L.257	2.57M Ledger		2572mm (8'5")	9.76	21.52
RS.L.207	2.07M Ledger		2072mm (6'9")	7.97	17.57
RS.L.157	1.57M Ledger		1572mm (5'2")	6.18	13.63
RS.L.140	1.40M Ledger		1400mm (4'7")	5.56	12.26
RS.L.129	1.29M Ledger		1286mm (4'3")	5.15	11.36
RS.L.109	1.09M Ledger		1088mm (3'7")	4.44	9.79
RS.L.104	1.04M Ledger		1036mm (3'5")	4.26	9.39
RS.L.102	1.02M Ledger		1020mm (3'4")	4.20	9.26
RS.L.088	0.88M Ledger		880mm (2'11")	3.70	8.16
RS.L.073	0.73M Ledger		732mm (2'5")	3.17	6.99

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is available by request.

Steel Tube Grade: Q235-Q355

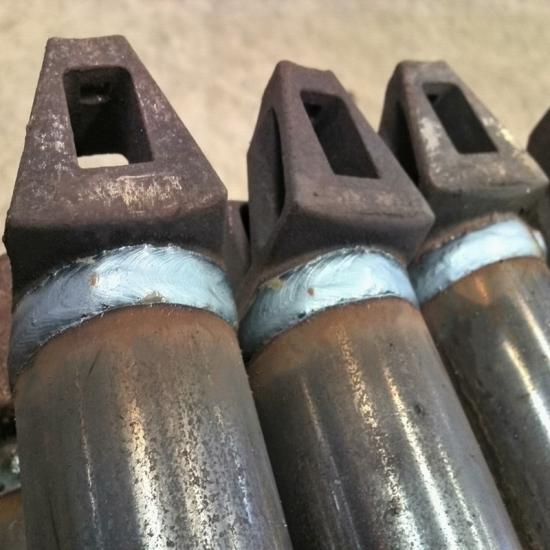

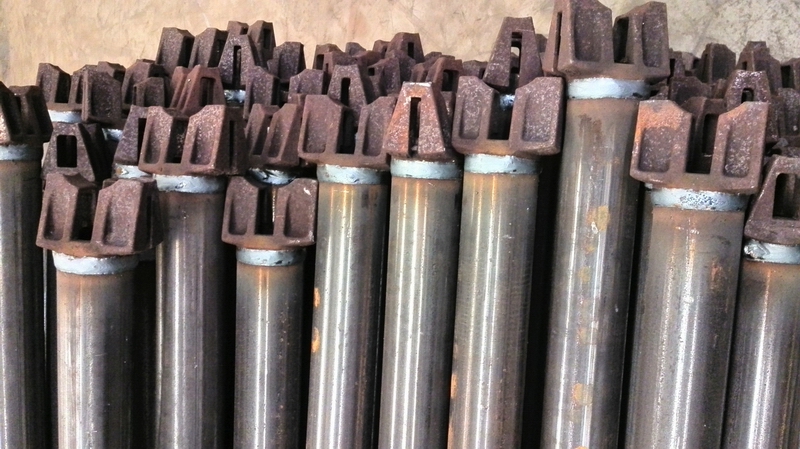

Ledger Node Connector: Casting Steel

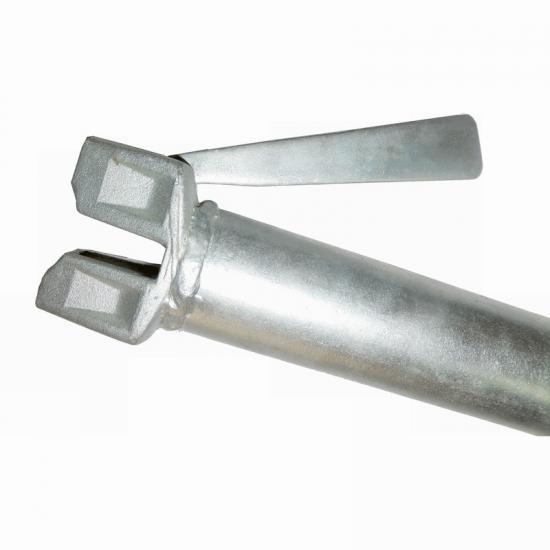

Wedge Pin: 6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted

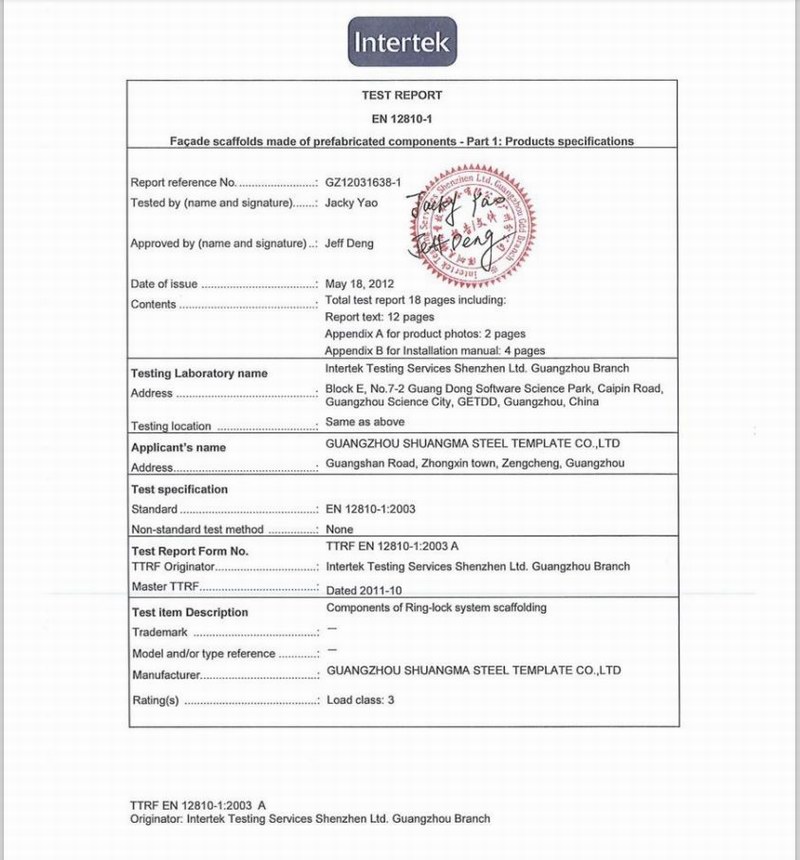

Quality Standard: EN12810

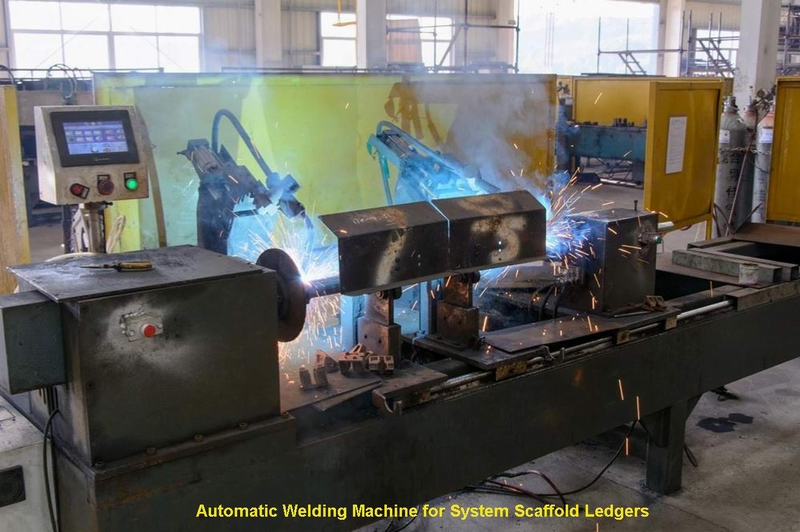

Welding Process: Automatic welding

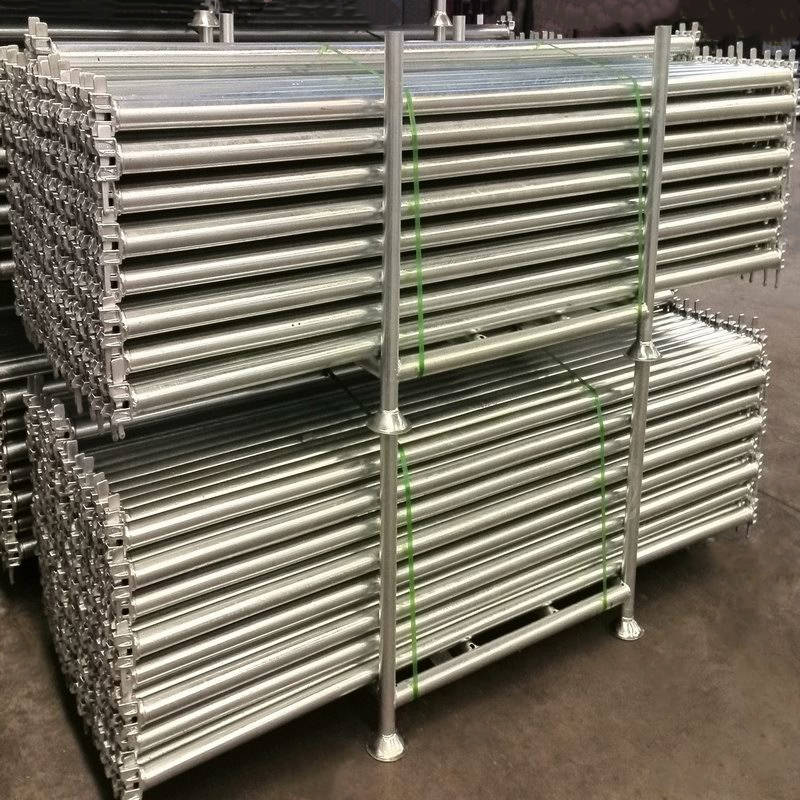

Packing: Steel Racks
