Hot Dip Galvanized Ring Lock Scaffolding Girder Beam

Ring Lock Scaffolding Girder Beam
Ring Lock Scaffolding Girder Beam Ring Lock Scaffolding Girder Beam

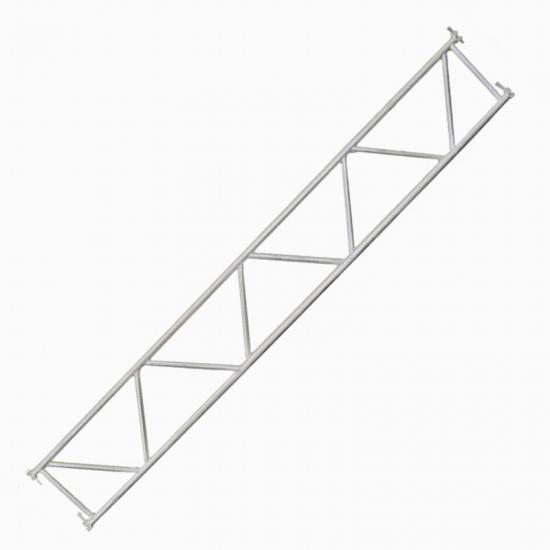

Hot Dip Galvanized Ring Lock Scaffolding Girder Beam

Ring Lock Scaffolding Lattice Beams are the horizontal members that allow for scaffolding over large spans or gaps, offers suspended, walk through and beam support in Construction. Sizes of the Lattice Beams are in 10 ft to 28 ft according to construction design and 500mm depth.


  • Item NO.:

    RS-GB

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    100PCS

  • Color:

    Galvainized Colour; Painted Blue, Red, Orange, Yel

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

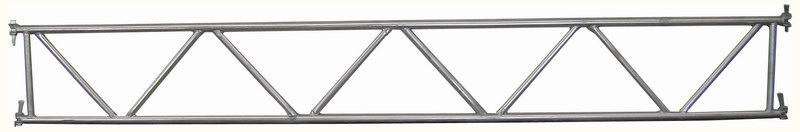

Ring Lock Scaffolding Girder Beam / Lattice Beam

Code Description Material Size Weight(kg) Weight(lbs)
RS.GB.426 4.26M Girder Beam Ø48.3x3.25mm; Q235-Q355 4270mm (14') 46.84  103.28
RS.GB.518 5.18M Girder Beam 5180mm (17') 56.20  123.92
RS.GB.610 6.10M Girder Beam 6100mm (20') 65.56  144.54
RS.GB.762 7.62M Girder Beam 7620mm (25') 90.15  198.76
RS.GB.852 8.52M Girder Beam 8520mm (28') 98.04  216.16


Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Steel Tube Grade: Q235-Q355

Ledger Head: casting

Beam Depth: 500mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
