Ring Lock Scaffolding System for Residential Construction
American Ring Lock Scaffolding
Home

Modular Scaffolding

American Ring Lock Scaffolding

Hot Dip Galvanized Ring Lock Scaffolding Bridge Ledger

Ring Lock Scaffolding Bridge Ledger
Ring Lock Scaffolding Bridge Ledger Ring Lock Scaffolding Bridge Ledger

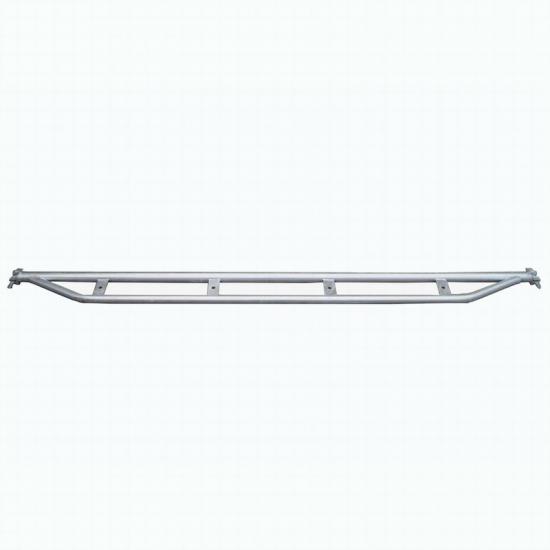

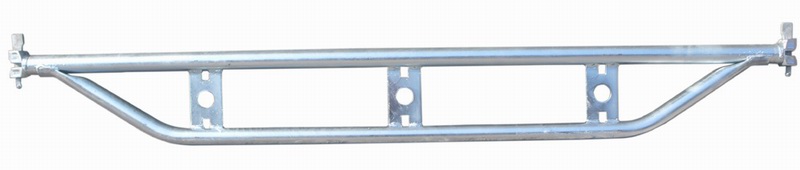

Hot Dip Galvanized Ring Lock Scaffolding Bridge Ledger

Ring Lock Scaffolding Bridge Ledgers provide horizontal extra load support for planks.

  • Item NO.:

    RS.BL

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    100PCS

  • Color:

    Galvainized Colour; Painted Blue, Red, Orange, Yel

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

Ring Lock Scaffolding Bridge Ledger

RS.BL.152 1.52M Bridge Ledger Ø48.3x3.25mm; Q235-Q355 1524mm (5') 4.31  9.51
RS.BL.183 1.83M Bridge Ledger 1829mm (6') 5.11  11.26
RS.BL.213 2.13M Bridge Ledger 2134mm (7') 6.01  13.25
RS.BL.244 2.44M Bridge Ledger 2438mm (8') 6.92  15.26
RS.BL.305 3.05M Bridge Ledger 3048mm (10') 8.62  19.01

Features:


Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.

Steel Tube Grade: Q235-Q355

Ledger Head: 2pcs, casting steel

Wedge Pins: 2pcs, Q235 steel

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
