Hot Dip Galvanized Ring Lock Scaffolding double Ledger

Ring Lock Scafolding Double ledgers are horizontal members ing that allow for increased load carrying capacities not possible with single tube or regular duty ledgers. They provide increased horizontal support for loads and planks.

  • Item NO.:

    RS.DL

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    100PCS

  • Color:

    Galvainized Colour; Painted Blue, Red, Orange, Yel

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

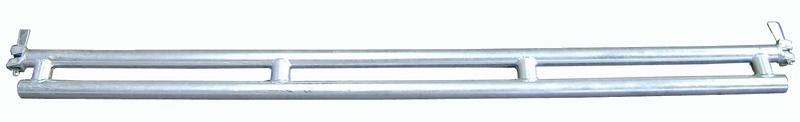

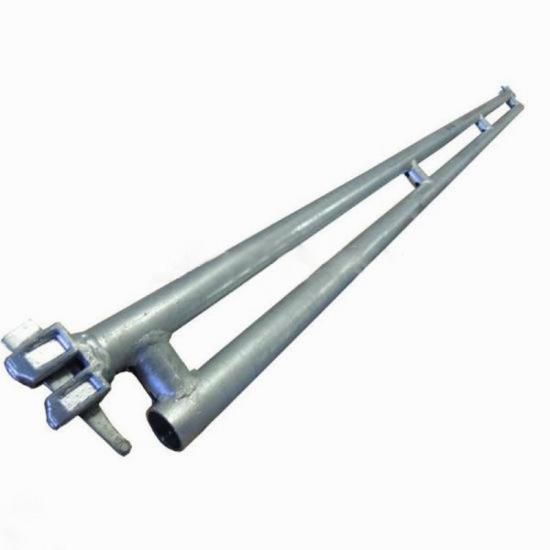

Ring Lock Scaffolding Double Ledger

Code Description Material Size Weight(kg) Weight(lbs)
RS.DL.152 1.52M Double Ledger Ø48.3x3.25mm; Q235-Q355 1524mm (5') 11.80  26.02
RS.DL.183 1.83M Double Ledger 1829mm (6') 14.26  31.44
RS.DL.213 2.13M Double Ledger 2134mm (7') 16.41  36.18
RS.DL.244 2.44M Double Ledger 2438mm (8') 18.87  41.6
RS.DL.305 3.05M Double Ledger 3048mm (10') 23.48  51.76

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is available by request.

Steel Tube Grade: Q235-Q355

Ledger Head: 2pcs, Casting Steel

Wedge Pin: 2pcs, t=6mm

Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
