Ring Lock Scaffolding System for Residential Construction

American Type Ring Lock Scaffolding Ledger / Horizontal

American Type Ringlock Scaffolding, typical product is Safway system scaffolding, is the most popular modular system scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, power plant, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform / grandstand for events, and also plays a heavy load duty in many kinds of project.

Item NO.:
RS.L.xxx
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Powder Coated or Painted Blue

Inquire now

Product Detail

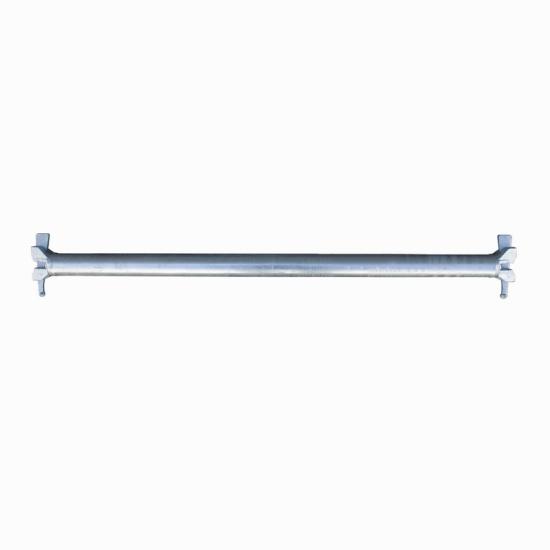

American Type Ring Lock Scaffolding Ledger / Horizontal

Product Details:

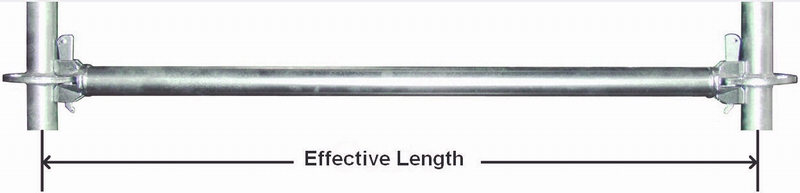

Code	Description	Material	Size	Weight(kg)	Weight(lbs)
RS.L.305	3.05M Ledger	Ø48.3x3.25mm; Q235-Q355	3048mm (10')	11.47	25.29
RS.L.244	2.44M Ledger		2438mm (8')	9.28	20.46
RS.L.213	2.13M Ledger		2134mm (7')	8.19	18.06
RS.L.183	1.83M Ledger		1829mm (6')	7.10	15.66
RS.L.152	1.52M Ledger		1524mm (5')	6.01	13.25
RS.L.122	1.22M Ledger		1219mm (4')	4.91	10.83
RS.L.115	1.15M Ledger		1150mm (3'10")	4.66	10.28
RS.L.107	1.07M Ledger		1067mm (3'6")	4.37	9.64
RS.L.091	0.91M Ledger		914mm (3')	3.82	8.42
RS.L.065	0.65M Ledger		650mm (2'2")	2.87	6.33
RS.L.061	0.61M Ledger		610mm (2')	2.73	6.02

Features:

Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is available by request.

Steel Tube Grade: Q235-Q355

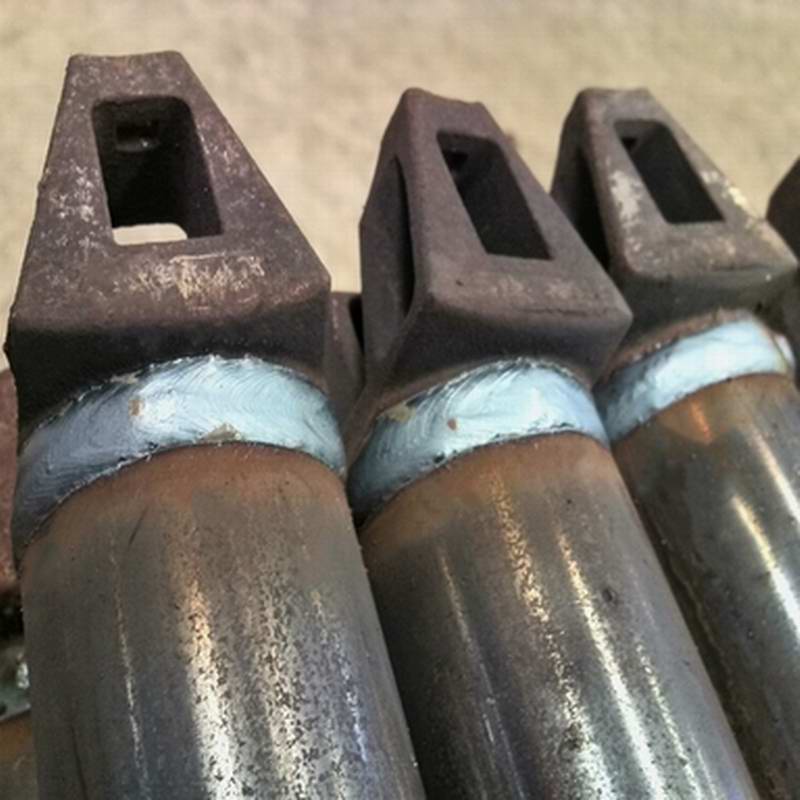

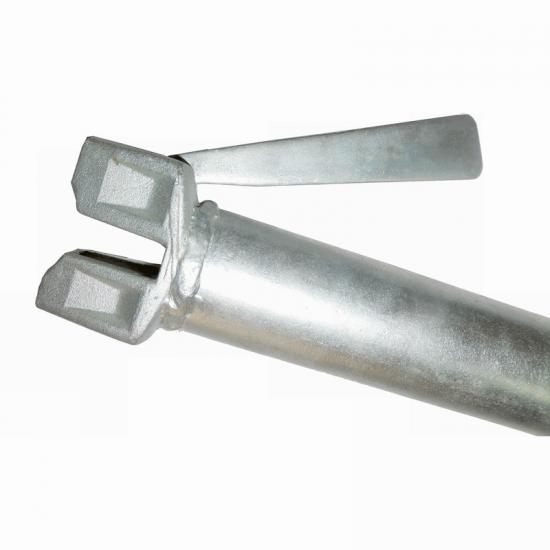

Ledger Node Connector: Casting Steel

Wedge Pin: 6mm

Surface Finishing: Hot dip Galvanized is recommended; Powder Coated or Painted is also available.

Quality Standard: ANSI A10.8, EN12810

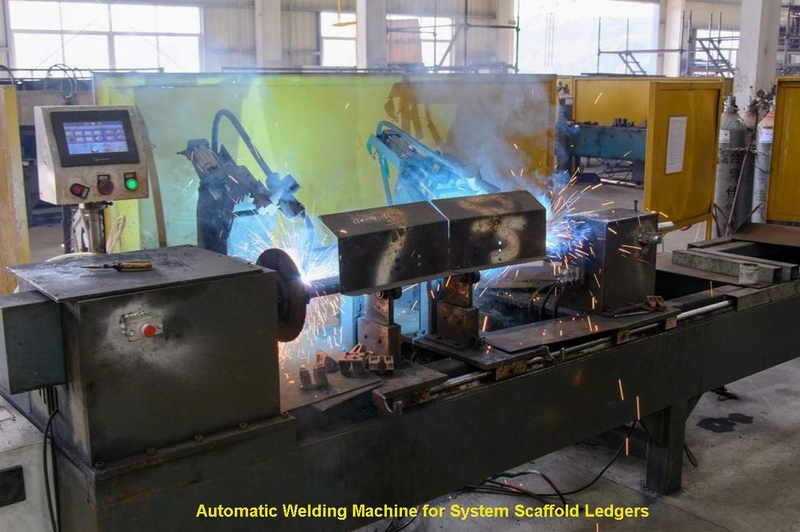

Welding Process: Automatic welding

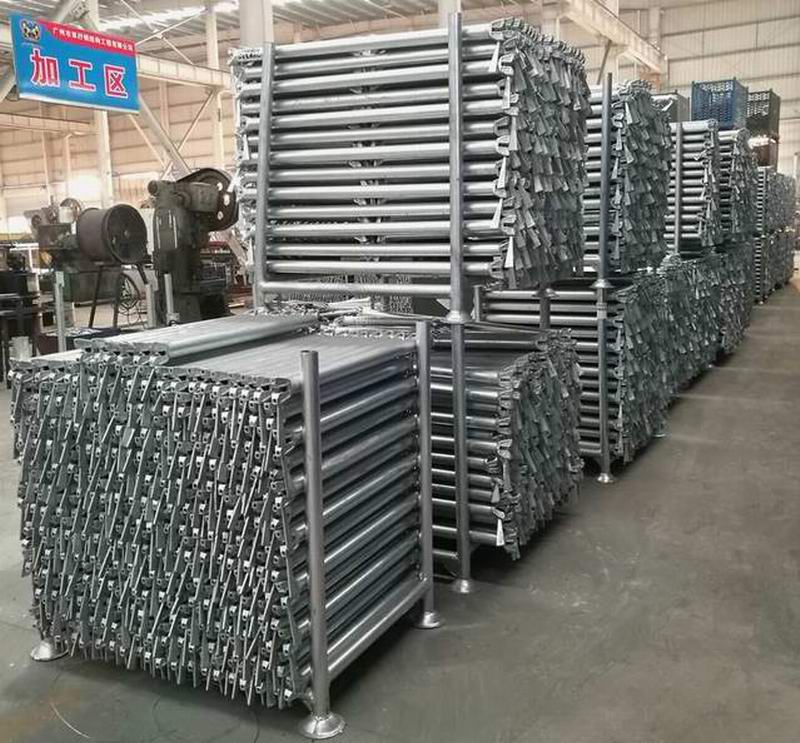

Packing: Steel Racks
