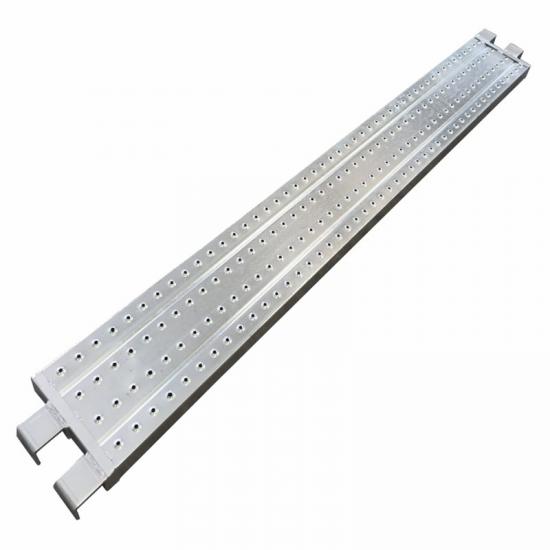

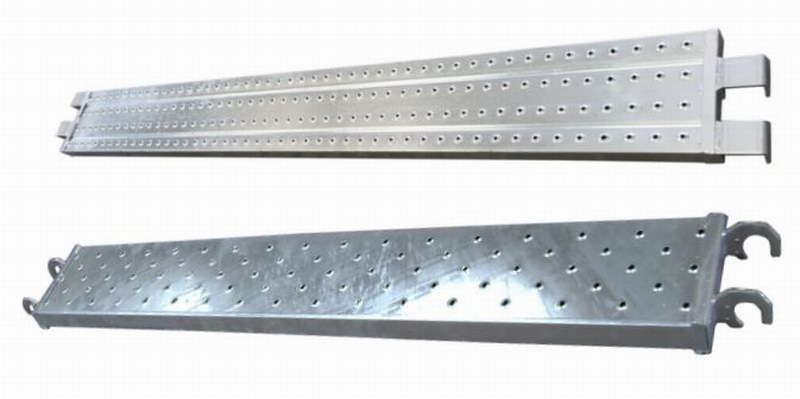

Galvanized Hook Lock Steel Plank for Scaffolding

Steel plank is used as walkway plank in scaffolding system for construction safety. It is a fitting part of construction scaffolds. There are stamping holes on the scaffolding plank to resist skidding for workers. The galvanized surface and rib reinforcement design makes scaffolding plank more stronger in the rainy days and moist environment.

Item NO.:
SP1
Lead Time:
20days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvanized Colour
Ｍaterial:
Steel

Inquire now

Product Detail

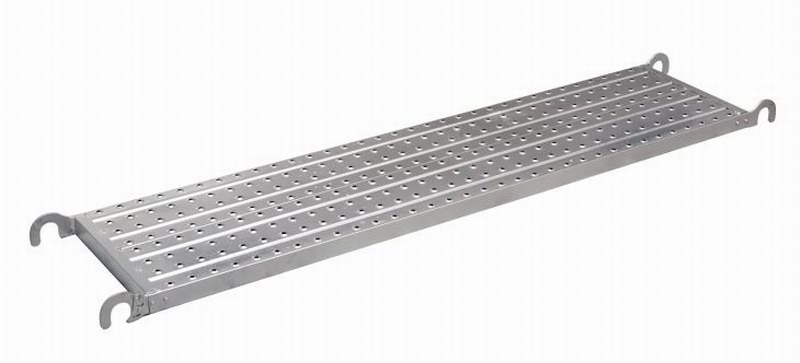

Hook Lock Steel Plank, 240mm (9.5") wide, t=1.8mm

Code	Size (Metric)	Size (Imperial)	Weight(kg)	Weight(lbs)
SP1.24305	240x3048mm	9.5" x 10'	17.81	39.27
SP1.24255	240x2548mm	9.5" x 8'-4 5/16"	15.04	33.16
SP1.24244	240x2438mm	9.5" x 8'	14.47	31.91
SP1.24213	240x2134mm	9.5" x 7'	12.88	28.40
SP1.24205	240x2048mm	9.5" x 6'-8 5/8"	12.43	27.41
SP1.24183	240x1829mm	9.5" x 6'	11.28	24.87
SP1.24152	240x1524mm	9.5" x 5'	9.54	21.04
SP1.24122	240x1219mm	9.5" x 4'	7.80	17.20
SP1.24105	240x1048mm	9.5" x 3'-5 1/4"	6.90	15.21
SP1.24091	240x914mm	9.5" x 3'	6.20	13.67
SP1.24061	240x610mm	9.5" x 2'	4.61	10.17

* Material: Steel grade Q235. Plank thickness 1.8mm,width 240mm, height 45mm.

* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.

Hook Lock Steel Plank, 480mm (18.9") wide, t=1.8mm.

Code	Size (Metric)	Size (Imperial)	Weight(kg)	Weight(lbs)
SP1.48305	480x3048mm	18.9" x 10'	34.34	75.72
SP1.48255	480x2548mm	18.9" x 8'-4 5/16"	28.80	63.50
SP1.48244	480x2438mm	18.9" x 8'	27.65	60.97
SP1.48213	480x2134mm	18.9" x 7'	24.47	53.96
SP1.48205	480x2048mm	18.9" x 6'-8 5/8"	23.57	51.97
SP1.48183	480x1829mm	18.9" x 6'	21.28	46.92
SP1.48152	480x1524mm	18.9" x 5'	17.78	39.20
SP1.48122	480x1219mm	18.9" x 4'	14.27	31.47
SP1.48105	480x1048mm	18.9" x 3'-5 1/4"	12.49	27.54

* Material: Steel grade Q235. Plank thickness 1.8mm,width 480mm, height 45mm.

* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.

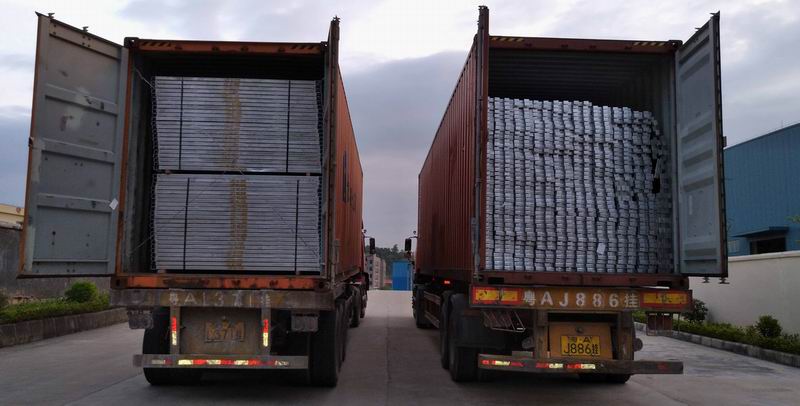

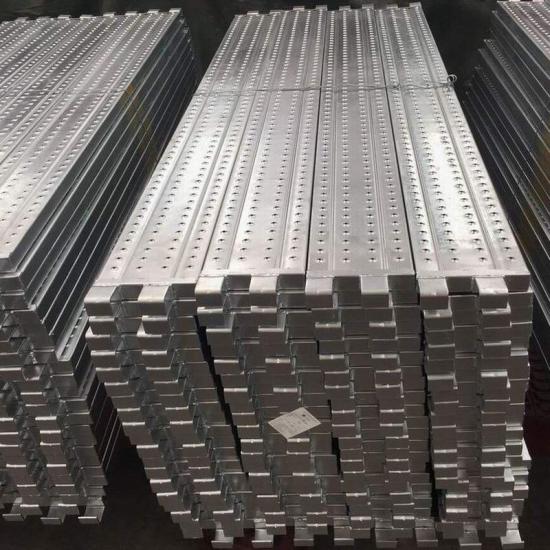

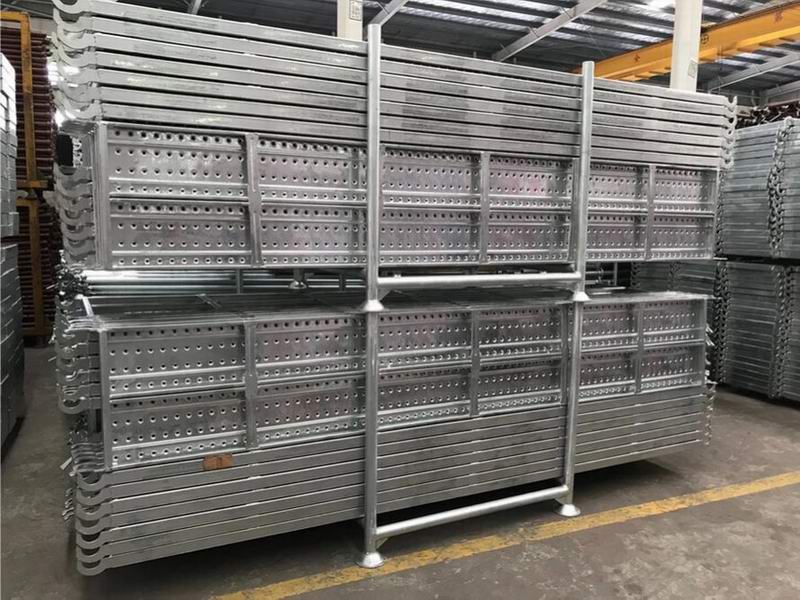

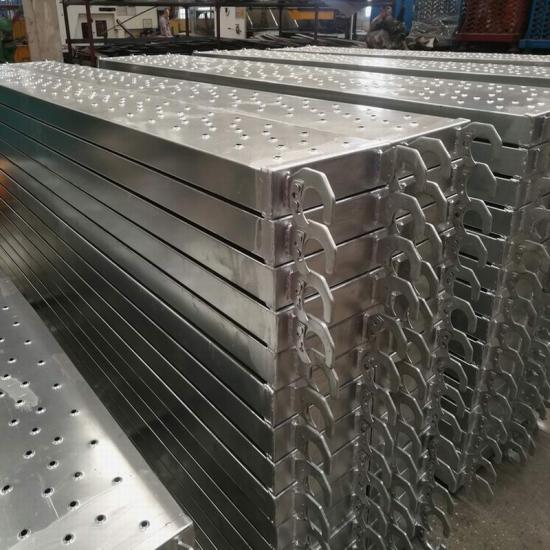

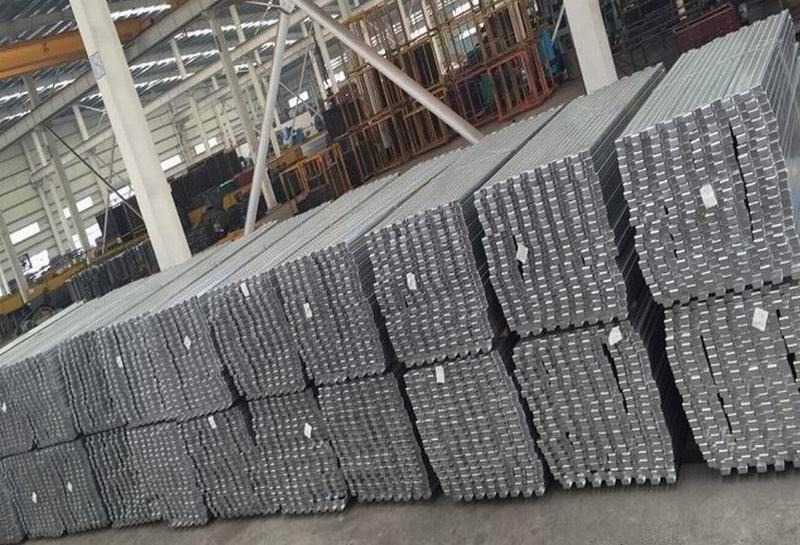

Scaffolding Planks Paackages and Container Loading.
