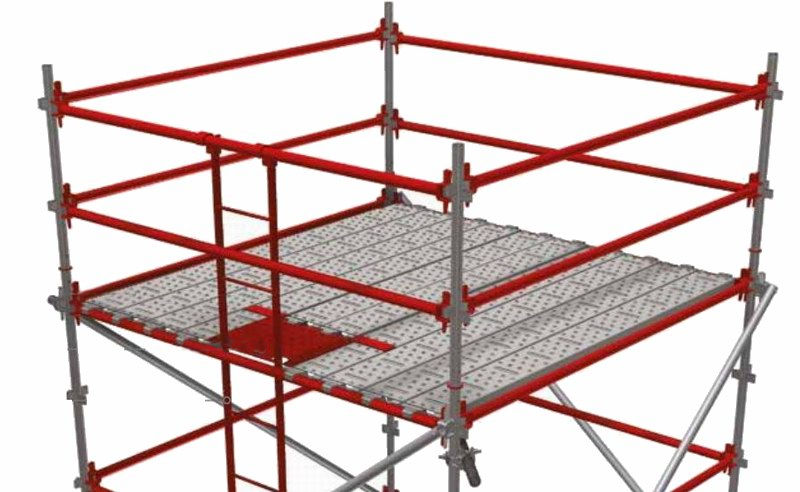

Ring Lock Scaffolding System for Residential Construction

South Africa Type Hook on Board / Steel planks

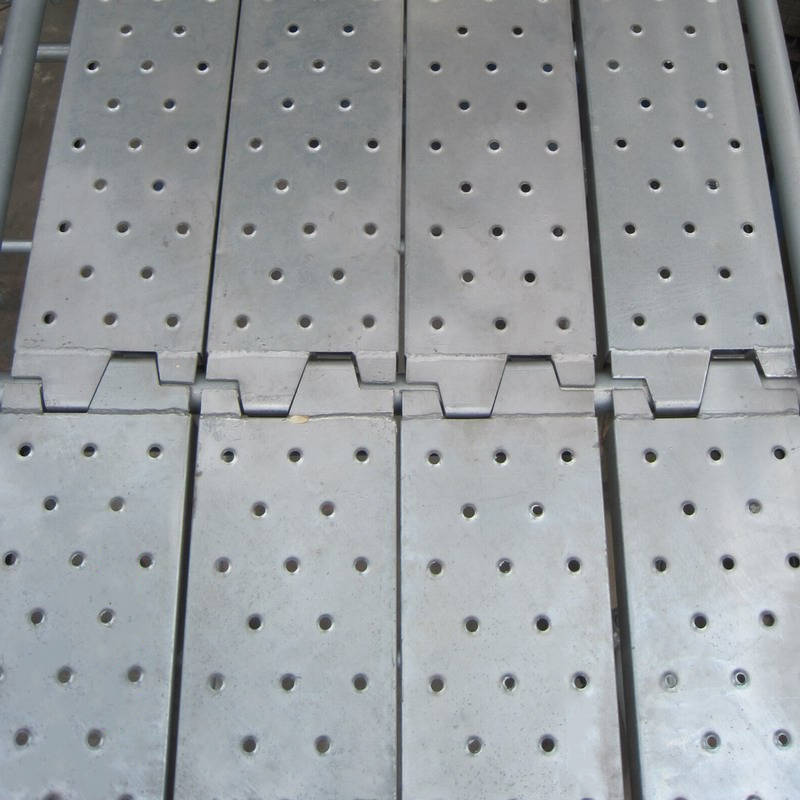

Steel plank is used as walkway plank in scaffolding system for construction safety. It is a fitting part of construction scaffolds. There are stamping holes on the scaffolding plank to resist skidding for workers. The galvanized surface and rib reinforcement design makes scaffolding plank more stronger in the rainy days and moist environment.

Hook On Board is a popular and economical scaffolding plank in South Africa.

Item NO.:
SP3
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Powder Coated/Painted Blue, Re

Inquire now

Product Detail

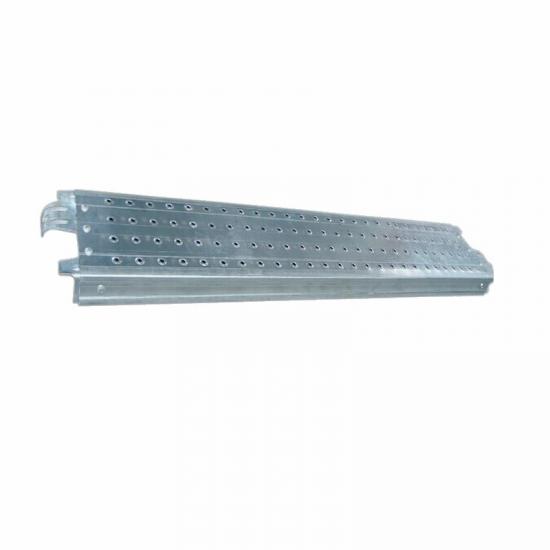

South Africa Type Hook On Board / Steel Plank, 230mm (9") wide, t=1.8mm

Code	Size (Metric)	Size (Imperial)	Weight(kg)	Weight(lbs)
SP3.23305	230x3048mm	9" x 10'	19.22	42.38
SP3.23300	230x3000mm	9" x 9'-10 1/8"	18.95	41.78
SP3.23270	230x2700mm	9" x 8'-10 1/3"	17.27	38.08
SP3.23250	230x2500mm	9" x 8'-2 7/16"	16.01	35.30
SP3.23244	230x2438mm	9" x 8'	15.67	34.55
SP3.23230	230x2300mm	9" x 7-'6 9/16"	14.90	32.85
SP3.23213	230x2134mm	9" x 7'	13.97	30.80
SP3.23210	230x2100mm	9" x 6-'10 11/16"	13.64	30.08
SP3.23200	230x2000mm	9" x 6'-6 3/4"	13.08	28.84
SP3.23183	230x1829mm	9" x 6'	12.12	26.72
SP3.23180	230x1800mm	9" x 5'-10 7/8"	11.96	26.37
SP3.23160	230x1600mm	9" x 5'-3"	10.84	23.90
SP3.23152	230x1524mm	9" x 5'	10.41	22.95
SP3.23150	230x1500mm	9" x 4'-11 1/16"	10.28	22.67
SP3.23129	230x1295mm	9" x 4'-3"	8.99	19.82
SP3.23122	230x1219mm	9" x 4'	8.57	18.90
SP3.23120	230x1200mm	9" x 3'-11 1/4"	8.46	18.65
SP3.23100	230x1000mm	9" x 3'-3 3/8"	7.34	16.18
SP3.23090	230x900mm	9" x 2'-11 7/16"	6.78	14.95
SP3.23080	230x800mm	9" x 2'-7 1/2"	6.22	13.72
SP3.23060	230x600mm	9" x 1'-11 5/8"	5.10	11.25

* Material: Steel grade Q235. Plank thickness 1.8mm,width 230mm, height 63.5mm.

* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
