South-East Asia Plain End steel Planks for Tubular Scaffolding

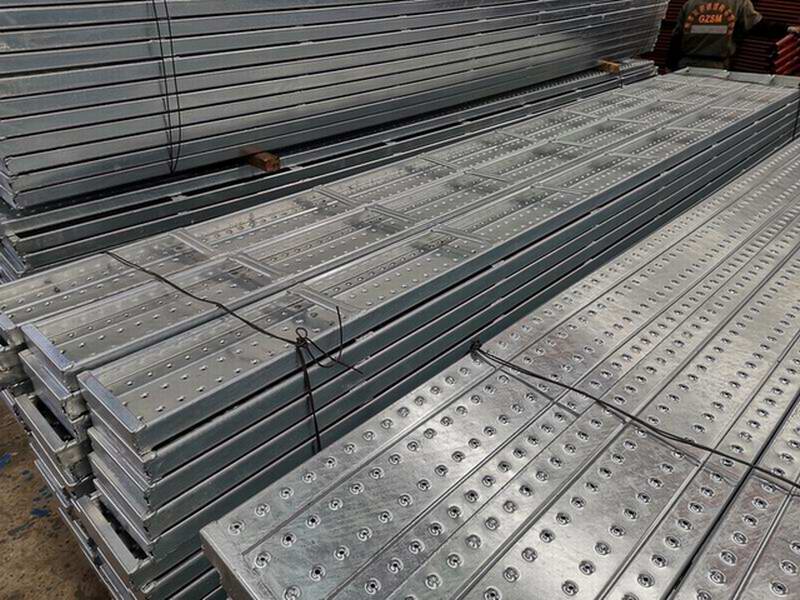

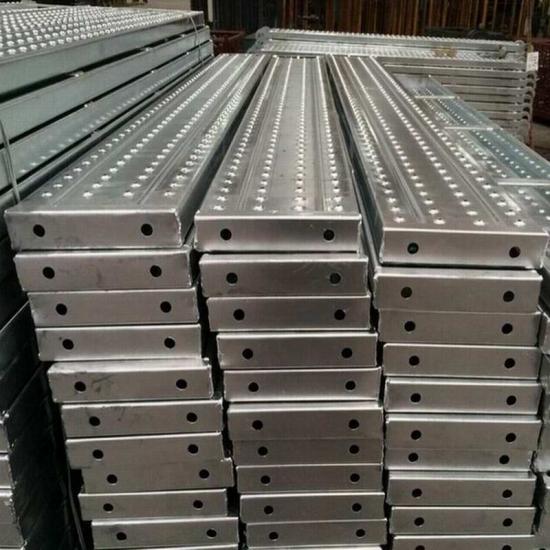

South-East Asia Type of Steel Plank is a kind of economical, light weight, good quality scaffolding plank. It is normally used for coupler-tubular scaffolding, it is in 240mm or 210mm wide, and in the length of 0.5m, 1.0m, 1.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m, 4.0m.

Item NO.:
SP5
Lead Time:
30days
Product Origin:
Guangzhou, China
Shipping Port:
Guangzhou, China
Payment:
T/T, L/C at sight
Min order:
500PCS
Color:
Galvainized Colour; Painted Blue, Red, Orange, Yel
Ｍaterial:
Steel

Inquire now

Product Detail

South-east Asia Type Steel Plank, 240mm (9.5") wide, t=1.5mm, without hooks

Code	Size (Metric)	Size (Imperial)	Weight(kg)	Weight(lbs)
SP5.24400	240x4000mm	9.5" x 13'-1 1/2"	19.06	42.03
SP5.24350	240x3500mm	9.5" x 11'-5 13/16"	16.72	36.87
SP5.24300	240x3000mm	9.5" x 9'-10 1/8"	14.38	31.71
SP5.24250	240x2500mm	9.5" x 8'-2 7/16"	12.04	26.55
SP5.24200	240x2000mm	9.5" x 6'-6 3/4"	9.70	21.39
SP5.24150	240x1500mm	9.5" x 4'-11 1/16"	7.37	16.25
SP5.24100	240x1000mm	9.5" x 3'-3 3/8"	5.03	11.09
SP5.24050	240x500mm	9.5" x 1'-7 11/16"	2.69	5.93

Material: Steel grade Q235. Plank thickness 1.5mm,width 240mm, height 45mm.

Surface Treatment: Pre-galvanized is recommended, hot dip galvanized , powder coated or painted is also available.

Other thickness 1.2mm is available by request.

South-east Asia Type Steel Plank, 210mm (8.26") wide, t=1.5mm, without hooks

Code	Size (Metric)	Size (Imperial)	Weight(kg)	Weight(lbs)
SP5.21400	210x4000mm	8.26" x 13'-1 1/2"	17.46	38.50
SP5.21350	210x3500mm	8.26" x 11'-5 13/16"	15.32	33.78
SP5.21300	210x3000mm	8.26" x 9'-10 1/8"	13.17	29.04
SP5.21250	210x2500mm	8.26" x 8'-2 7/16"	11.03	24.32
SP5.21200	210x2000mm	8.26" x 6'-6 3/4"	8.89	19.60
SP5.21150	210x1500mm	8.26" x 4'-11 1/16"	6.74	14.86
SP5.21100	210x1000mm	8.26" x 3'-3 3/8"	4.60	10.14
SP5.21050	210x500mm	8.26" x 1'-7 11/16"	2.45	5.40

Material: Steel grade Q235. Plank thickness 1.5mm,width 210mm, height 45mm.

Surface Treatment: Pre-galvanized is recommended, hot dip galvanized , powder coated or painted is also available.

Other thickness 1.2mm is available by request.
