Ring Lock Scaffolding System for Residential Construction

Painted Nested Lock Scaffolding Verticals

Nested Lock Scaffolding is composed of vertical post, horizontal ledger, diagonal brace, screw jack, base jack and other components. The vertical is connected by a sleeve socket, and there are pressed steel nested buckle sockets welded on the vertical tube. The Ledger has two end joints. When installing scaffolding, the end joints are inserted into the nested buckle sockets on the vertical as node connection. According to the purpose of the scaffolding, it can be classified as two types: shoring scaffolding and access scaffolding.
  • Item NO.:

    NS.S
  • Lead Time:

    30days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    50 tons
  • Color:

    Galvainized Colour; Painted/Powder Coated in Red o
  • Material:

    Steel
  • Product Detail

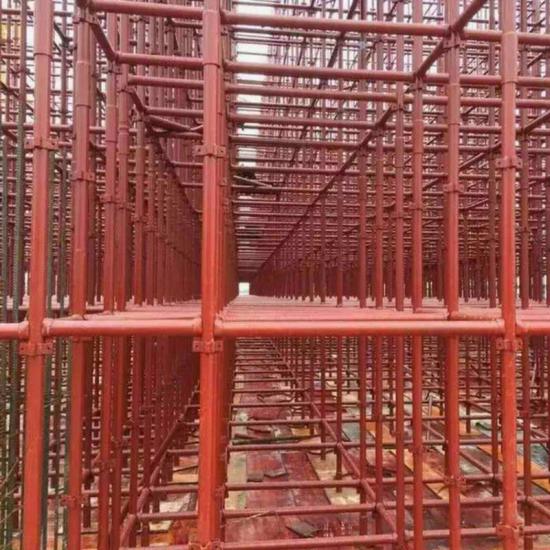

Nested Lock scaffolding is widely used in high-rise and low-rise commercial and residential buildings, railway bridges, viaducts, overpasses, power stations, gymnasiums and other buildings and structures. It can be arbitrarily spliced and supported in complex terrain. It is suitable for large and medium-sized projects with the requirements of quick installation and quick demolition.

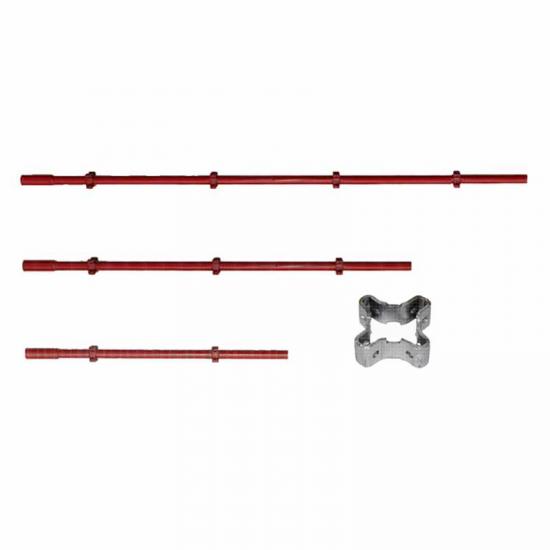

Nested Lock Scaffold Vertical use Ф48.3x3.25mm steel pipe, steel grade Q235. The pipe length has 3000mm, 2400mm, 2100mm, 1800mm, 1200mm, 900mm, 600mm. On vertical pipe, it welds nested buckle socket at every 600mm distance.


Nested Lock Scaffolding Standard / Vertical

Code Description Material Size Weight(kg) Weight(lbs)
NS.S.300 3.00M Standard Ø48x3.25; Q235 3000mm 13.49  29.75
NS.S.240 2.40M Standard 2400mm 10.97  24.19
NS.S.210 2.10M Standard 2100mm 9.53  21.00
NS.S.180 1.80M Standard 1800mm 8.45  18.63
NS.S.120 1.20M Standard 1200mm 5.93  13.07
NS.S.090 0.90M Standard 900mm 4.48  9.88
NS.S.060 0.60M Standard 600mm 3.41  7.51
NS.S.012 0.12M Standard 600mm 0.80  1.76
* Other tube thickness 3.5/3.0mm are available also by request.

* Finishing: Hot dip galvanized, powder coated, painted.
