Adjustable Screw Jacks for System Scaffolding

System Scaffolding Screw Jack is the adjustable base for modular system scaffolding. It provides not only heavy duty load bearing support to the scaffolding, but also provide leveling adjustment.

Solid screw jack is made by the solid steel rod with dia.37.5mm after rolling the thread. Hollow screw jack is made by O.D 38x5mm or 5.5mm sealess steel tube.

The jack nut is made by cast steel and to hold O.D 48.3mm scaffolding tube or O.D 60.3mm Shoring scaffold tube. Base plate is made by 6-8mm carbon steel.

  • Item NO.:

    SBJ, HBJ
  • Lead Time:

    20days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    200PCS
  • Color:

    Galvanized Colour
  • Material:

    Steel
  • Product Detail

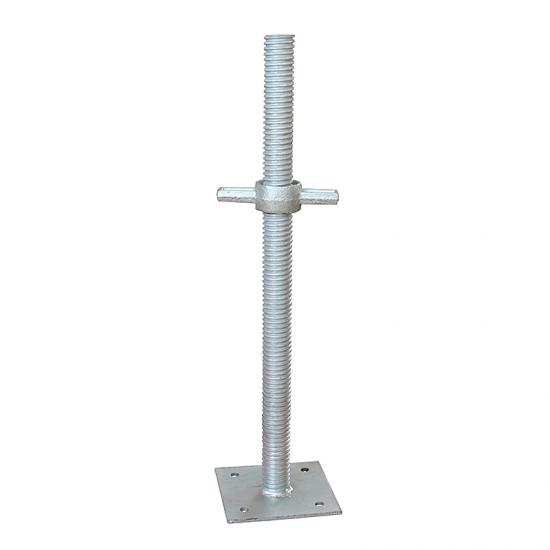

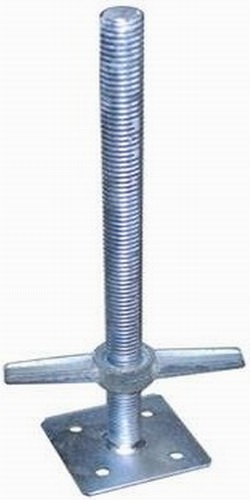

Solid Base Jack / Screw Jack for System Scaffolding

Code Description Specification Size (Imperial) Weight (kg) Weight (lbs)
SBJ.37070 Solid Base Jack Tr37x700mm, 150x150x8mm 28" 7.28  16.05
SBJ.37060 Tr37x600mm, 150x150x8mm 24" 6.52  14.38

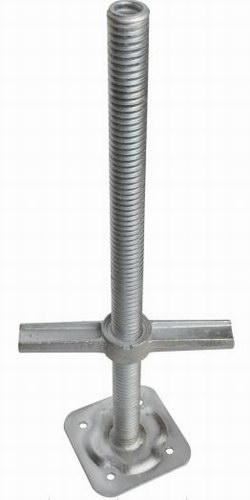

Hollow Base Jack / Screw Jack for System Scaffolding

Code Description Specification Size (Imperial) Weight (kg) Weight (lbs)
HSJ.38070 Hollow Base Jack Ø38x5x700mm, 150x150x8mm 28" 4.84  10.67
HSJ.38060 Ø38x5x600mm, 150x150x8mm 24" 4.43  9.77



Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we

how can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact Us
Related products
Base Jack for H Frames
Galvanized Base Jacks for Frame Scaffolding
Frame Scaffolding Screw Jack is the adjustable base jack for H frame scaffolding. It provides not only heavy duty load bearing support to the scaffolding, but also provide leveling adjustment. Solid screw jack is made by the solid steel rod with dia.34mm after rolling the thread. Hollow screw jack is made by O.D 34x4mm sealess steel tube. The jack 1
View More
Nested Lock Scaffolding Verticals
Painted Nested Lock Scaffolding Verticals
Nested Lock Scaffolding is composed of vertical post, horizontal ledger, diagonal brace, screw jack, base jack and other components. The vertical is connected by a sleeve socket, and there are pressed steel nested buckle sockets welded on the vertical tube. The Ledger has two end joints. When installing scaffolding, the end joints are ins1
View More

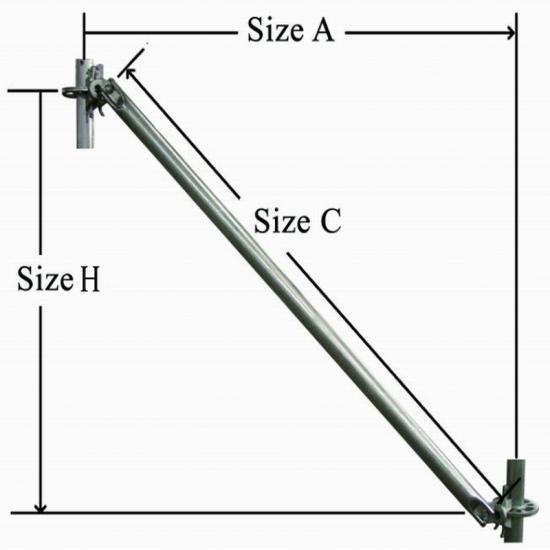

Ring Lock Scaffolding Level Brace
Hot Dip Galvanized Ring Lock Scaffolding Level Brace / Plain Brace
Ring Lock Scaffolding Level Brace, also called Plain Brace, is main component of system scaffolding which use as diagonal ledger. It is used in the large bay mobile scaffolding tower and gives additional strength to the tower structure and keep the tower stable.
View More
Aluminum Kwikstage Scaffolding Standard
Aluminum Kwikstage Scaffolding Standard / Vertical
Aluminium Kwikstage system provides a highly flexible and easy to assemble scaffolding system that has been designed along the same lines as the steel Kwikstage range of products.
View More

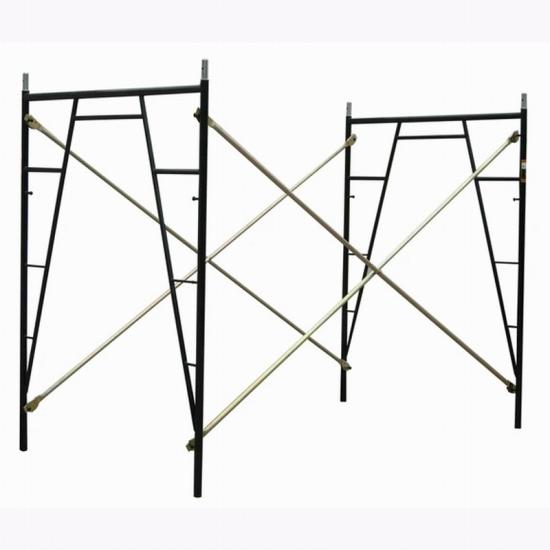

Puched Hole Cross Braces
