Ring Lock Scaffolding System for Residential Construction

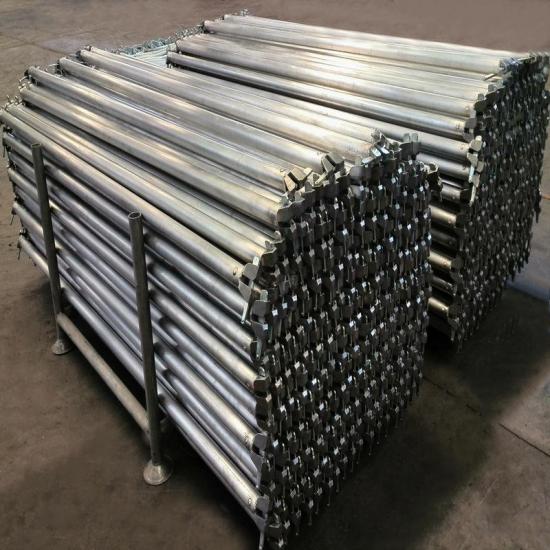

Aluminum Ring Lock Scaffolding Ledger

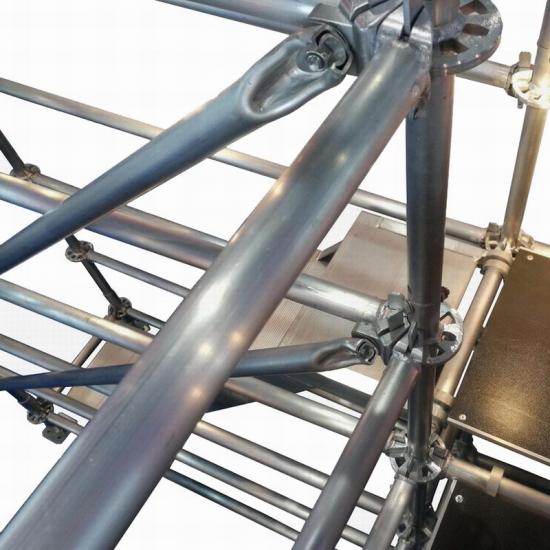

Aluminum Ring Lock Scaffolding is the industry standard for modular scaffolding and offers unbeatable durability, simplicity and versatility. Ring Lock is the scaffolding of choice globally for residential building, industrial, construction sites, aircraft building and maintenance, performing arts and large events, and so on.


Main components of Aluminium Ring Lock Scaffolding: Standard, Ledger, Diagonal Brace, Level Brace, Transom, Hop Up Bracket, Full Aluminum Deck (Plank), Aluminum Plywood Deck, Stair, Truss Transom, Girder Beam, and so on.

  • Item NO.:

    ARS.L
  • Lead Time:

    50days
  • Product Origin:

    Guangzhou, China
  • Shipping Port:

    Guangzhou, China
  • Payment:

    T/T, L/C at sight
  • Min order:

    500PCS
  • Color:

    Self-colour, Powder Coating Colour
  • Product Detail

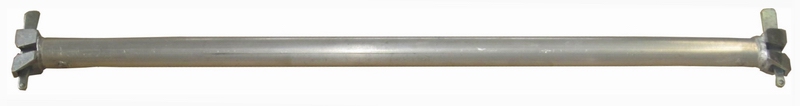

Aluminum Ring Lock Scaffolding Scaffolding  Ledger /Horzontal


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
ARS.L.310 3.10M Ledger Ø48.4x4.2mm; Alu. 6061-T6 3099mm (10'2") 5.35  11.80
ARS.L.305 3.05M Ledger 3048mm (10') 5.27  11.62
ARS.L.244 2.44M Ledger 2438mm (8') 4.31  9.50
ARS.L.213 2.13M Ledger 2134mm (7') 3.83  8.44
ARS.L.183 1.83M Ledger 1829mm (6') 3.34  7.37
ARS.L.152 1.52M Ledger 1524mm (5') 2.86  6.31
ARS.L.127 1.27M Ledger 1268mm (4'2") 2.46  5.43
ARS.L.100 1.00M Ledger 1000mm (3'3") 2.04  4.49
ARS.L.076 0.76M Ledger 762mm (2'6") 1.66  3.66
ARS.L.066 0.66M Ledger 660mm (2'2") 1.50  3.30
ARS.L.056 0.56M Ledger 560mm (1'10") 1.34  2.96
ARS.L.307 3.07M Ledger Ø48.4x4.2mm; Alu. 6061-T6 3072mm (10'1") 5.31  11.71
ARS.L.257 2.57M Ledger 2572mm (8'5") 4.52  9.97
ARS.L.207 2.07M Ledger 2072mm (6'9") 3.73  8.22
ARS.L.157 1.57M Ledger 1572mm (5'2") 2.94  6.48
ARS.L.109 1.09M Ledger 1088mm (3'7") 2.17  4.80
ARS.L.073 0.73M Ledger 732mm (2'5") 1.61  3.55
ARS.L.039 0.39M Ledger 390mm (1'3") 1.07  2.36



Features:

Aluminum Tube Dimension: O.D 48.4x4.2mm.

Alu Alloy Grade: 6061-T6, 6082-T6

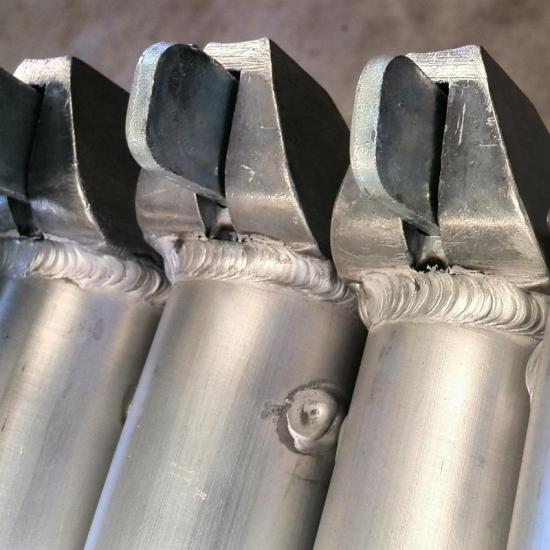

Ledger Connector: Casting aluminum

Common size for North America and Australia: 10', 8', 7', 6', 5', 4'2", 2'6".

Common size for Europe and South America: 3072mm, 2572mm, 2072mm, 1572mm, 732mm.

Surface Finishing: Self-finishing, Powder Coated

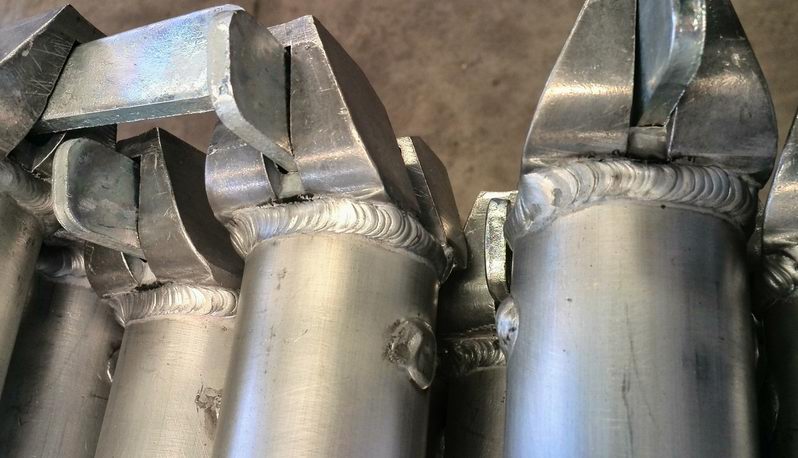

Welding Process: Argon-arc welding
