Ring Lock Scaffolding System for Residential Construction
Australian Scaffolding Frames
Home

Frame Scaffolding

Australian Scaffolding Frames

AS/NZS Australian A Frame Scaffolding

Australian Scaffolding A Frame
Australian Scaffolding A Frame Australian Scaffolding A Frame Australian Scaffolding A Frame Australian Scaffolding A Frame Australian Scaffolding A Frame

AS/NZS Australian A Frame Scaffolding

A Frame Scaffolding system is a kind of galvanized scaffolding frame which is popular in Australia. A frames are fabricated by O.D. 48.3x3.25mm/3.0mm and O.D. 27x2.3mm galvanized tubes, or they are fabricated by black tubes and then do hot dip galvanized. The scaffolds are designed and complied to the requirements of AS 1576. The scaffold frames are widely used for residential house projects for scaffolding access.


The components and accessoies of A frame system mainly include: A frame, Cross Brace, Handrail Brace, Handrail Post, Interlock Steel Plank, Mesh Gate (Mesh Panel), Ladder Access Gate, Hop Up Bracket, Ladder, Base Jack (Base Plate), Coupling Pin, and so on.

  • Item NO.:

    AUF

  • Lead Time:

    30days

  • Product Origin:

    Guangzhou, China

  • Shipping Port:

    Guangzhou, China

  • Payment:

    T/T, L/C at sight

  • Min order:

    500PCS

  • Color:

    Galvanized Colour

  • Ｍaterial:

    Steel
Inquire now
  • Product Detail

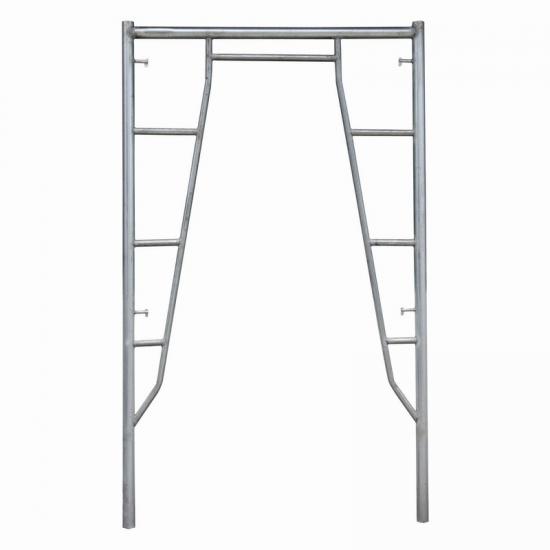

AUSTRALIAN A FRAME SCAFFOLDING


Features:

* Material: Steel grade Q235

* Tube Specification: Frame leg OD.48.3x3.25mm,handrail and cross brace OD.27x2.3mm,other thickness is available on request.

* Frame Width: 1310mm, 780mm

* Locking Device: Flip Lock

* Coupling Pin: CP5 (Square Coupling Pin)

* Fabrication: A frames welded by GI pipes and zinc coating to welding parts

* Finishing Options: Hot dip galvanized, electric galvanized, painted, powder coated

Galvanized AS 1576 Australian Frames Squre Joint Pins

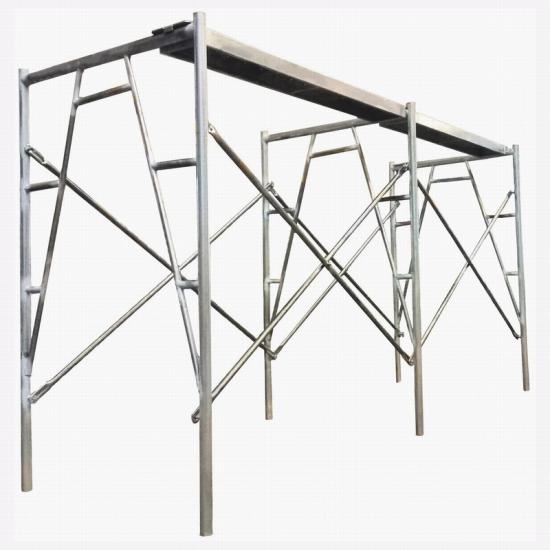

Australian A Frame for Sale

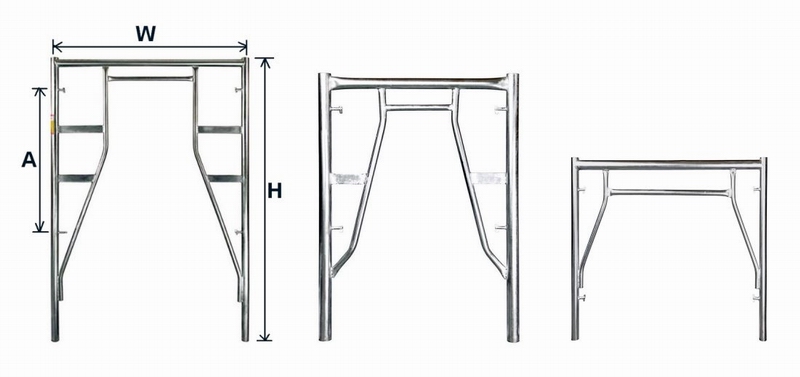

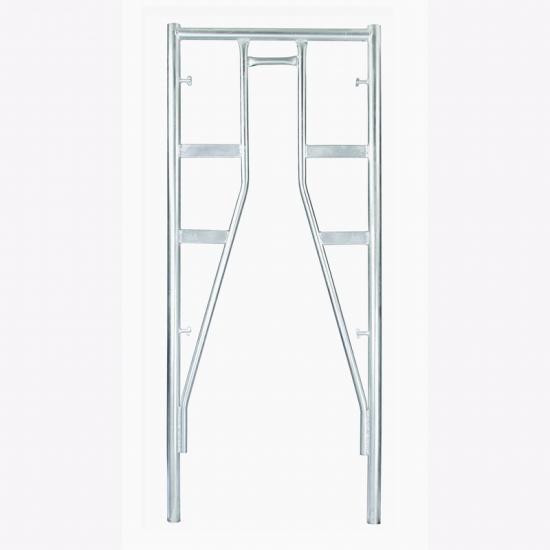

Australian A Frame

Code Description Width (W) Height (H) Lock Space (A) Weight(kg) Weight(lbs)
 AUF.S20 Standard Frame 1310x2000mm 1312mm 2000mm 1010mm 26.10  57.55
 AUF.N20 Narrow Frame 780x2000mm 780mm 2000mm 1010mm 23.10  50.94
 AUF.S18 Standard  Frame 1310x1825mm 1312mm 1825mm 1010mm 24.70  54.46
 AUF.N18 Narrow Frame 780x1825mm 780mm 1825mm 1010mm 21.70  47.85
 AUF.S15 Standard  Frame 1310x1525mm 1312mm 1525mm 1010mm 19.90  43.88
 AUF.N15 Narrow Frame 780x1525mm 780mm 1525mm 1010mm 17.40  38.37
 AUF.S12 Standard  Frame 1310x1220mm 1312mm 1220mm 550mm 17.50  38.59
 AUF.N12 Narrow Frame 780x1220mm 780mm 1220mm 550mm 14.90  32.85
 AUF.S09 Standard  Frame 1310x915mm 1312mm 915mm 550mm 14.00  30.87
 AUF.N09 Narrow Frame 780x1915 780mm 915mm 550mm 11.50  25.36

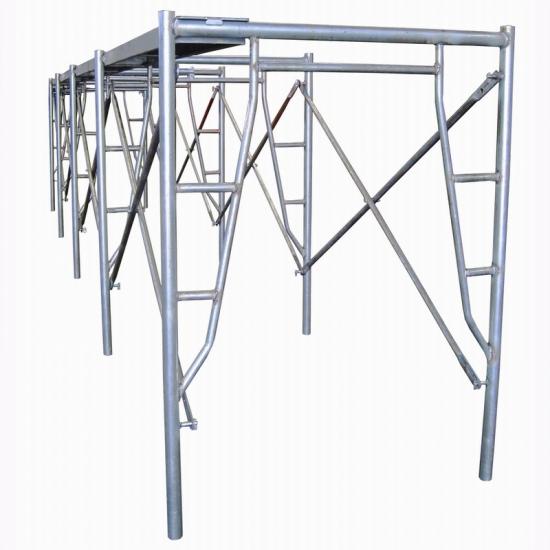

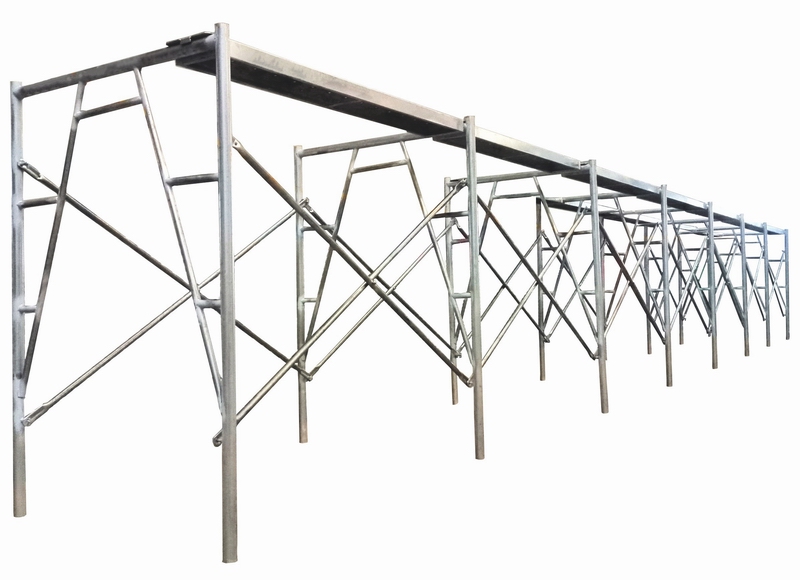

Galvanized Australian A Frames

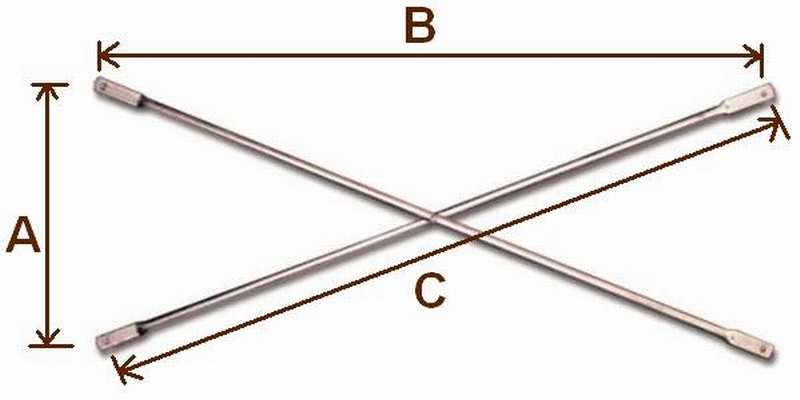

Australian A Frame Cross Braces

Code Description Size A Size B Size C Weight(kg) Weight(lbs)
 AUF.CB.26 2.6M Cross Braces 1010mm 2400mm 2604mm 7.47  16.47
 AUF.CB.24 2.4M Cross Braces 550mm 2400mm 2462mm 7.07  15.59
 AUF.CB.21 2.1M Cross Brace 1010mm 1830mm 2090mm 6.03  13.30
 AUF.CB.19 1.9M Cross Brace 550mm 1830mm 1910mm 5.52  12.17
 AUF.CB.16 1.6M Cross Brace 1010mm 1265mm 1619mm 4.71  10.38
 AUF.CB.13 1.3M Cross Brace 550mm 1265mm 1379mm 4.04  8.90
Galvanized Cross Braces



Australian A Frame Hand Rail Braces

Code Description Length (L) Tube Size Weight(kg) Weight(lbs)
 AUF.HB.24 2.4M Handrail Brace 2400mm Ø28x2.2mm 3.42  7.53
 AUF.HB.18 1.8M Handrail Brace 1830mm Ø28x2.2mm 2.62  5.77
 AUF.HB.12 1.25M Handrail Brace 1265mm Ø28x2.2mm 1.83  4.03
Handrail for Australian Frame

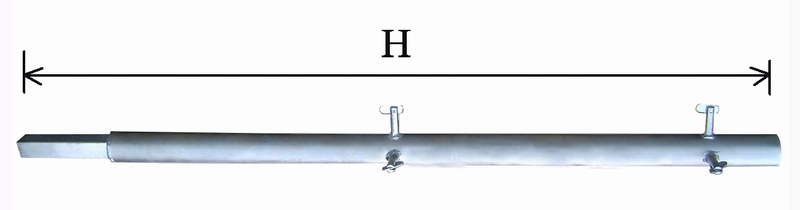

Australian A Frame Hand Rail Post

Code Description Lock Style Height (H) Weight(kg) Weight(lbs)
 AUF.HRP.1R Handrail Post (1 Rivet) 1182mm Flip Lock 1150mm 4.02  8.87
 AUF.HRP.2R Handrail Post (2 Rivets) 1150mm Flip Lock 1150mm 3.96  8.73
 AUF.HRP.4R Handrail and Corner Post (4 Rivets) 1150mm Flip Lock 1150mm 4.06  8.95
Scaffolding Handrail Posts

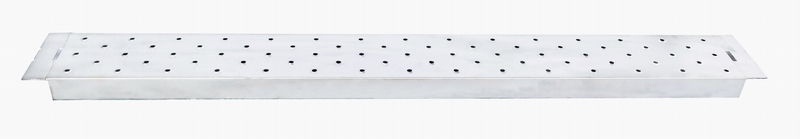

Australian A Frame Interlock Plank / Hook on Plank

Code Description Width (W) Length (L) Weight(kg) Weight(lbs)
 AUF.ILP.24 2.4M Interlock Steel Plank 220mm 2450mm 15.87  35.00
 AUF.ILP.18 1.8M Interlock Steel Plank 220mm 1880mm 12.54  27.65
 AUF.ILP.13 1.3M Interlock Steel Plank 220mm 1320mm 9.45  20.83
Interlock Scaffolding Planks

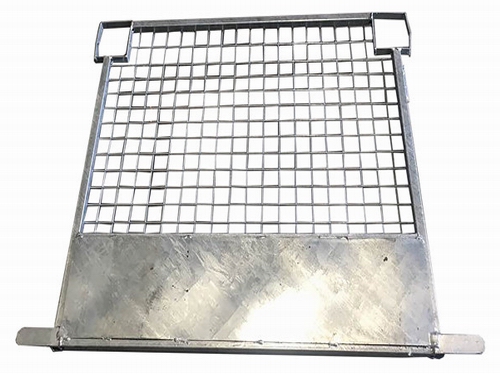

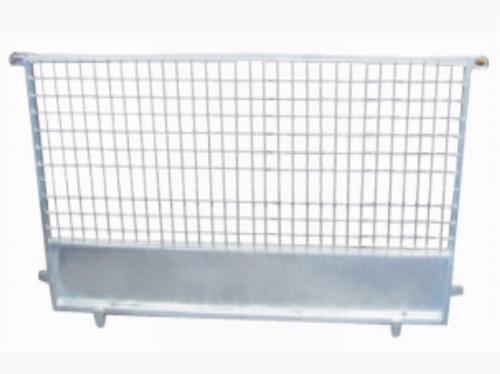

Australian A Frame Mesh Panel / Mesh Gate

Code Description Length (L) Height (H) Weight(kg) Weight(lbs)
 AUF.MP.18 1.8M Mesh Gate for Frame 1830mm 900mm 17.69  39.00
 AUF.MP.12 1.2M End Mesh Gate for Frame 1165mm 900mm 11.69  25.77
 AUF.MP.07 0.7M End Mesh Gate for Frame 635mm 900mm 7.09  15.64
Frame Mesh Panels End Mesh Panels

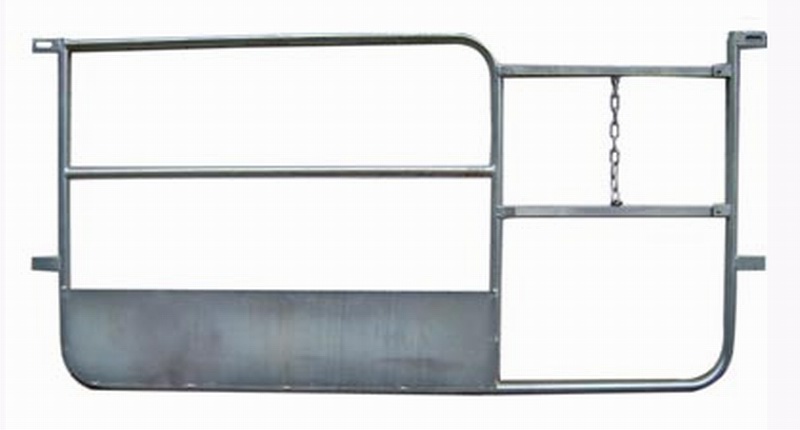

Australian A Frame External Ladder Gate

Code Description Length (L) Height (H) Weight(kg) Weight(lbs)
 AUF.ELG.18W 1.8M Wide External Ladder Gate 1810mm 910mm 11.97  26.39
 AUF.ELG.18N 1.8M Narrow External Ladder Gate 1810mm 910mm 14.06  31.00
 AUF.ELG.12 1.2M External Ladder Gate 1264mm 910mm 10.38  22.90
 AUF.ELG.07 0.7M External Ladder Gate 732mm 910mm 5.63  12.40
Ladder Gate Panels

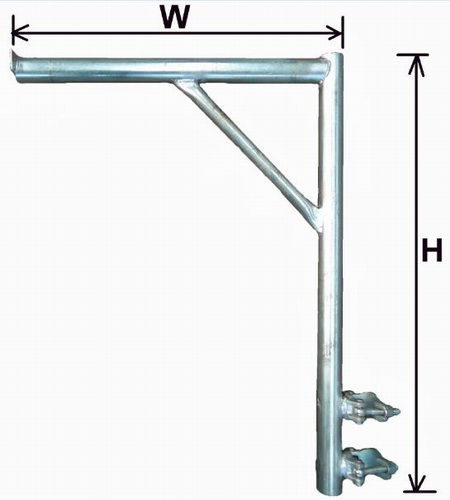

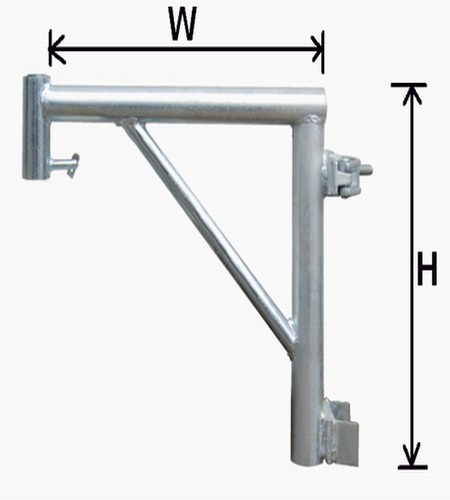

Australian A Frame Hop Up Bracket

Code Description Width (W) Height (H) Weight(kg) Weight(lbs)
 AUF.HUB.1 Hop Up Bracket 1 Board 235mm 410mm 4.21  9.28
AUFHUB.2 Hop Up Bracket 2 Board 450mm 410mm 5.31  11.70
 AUF.HUB.3 Hop Up Bracket 3 Board 672mm 460mm 6.76  14.90
 AUF.LHB Ladder Hop Up Bracket 660mm 900mm 7.85  17.31
Frame Hop Up Brackets Ladder Hop Up Brackets



Australian A Frame Accessories

Code Description Length (L) Tube Size Weight(kg) Weight(lbs)
 AUF.BP Square Tube Base Plate 186mm SHS 30x30x2 1.60  3.53
 AUF.PIN Square Joint Pin 222mm SHS 30x30x2 0.40  0.88
Square Tube Base Plate Square Tube Spigot
